Sinotruck Howo A7 Heavy Dump Truck 6 X 4 Tipper Dumper 40 tons capacity dump truck Euro 2 Engine color green

SINO VEHICLE & EQUIPMENT COMPANY LTD
Contact Now

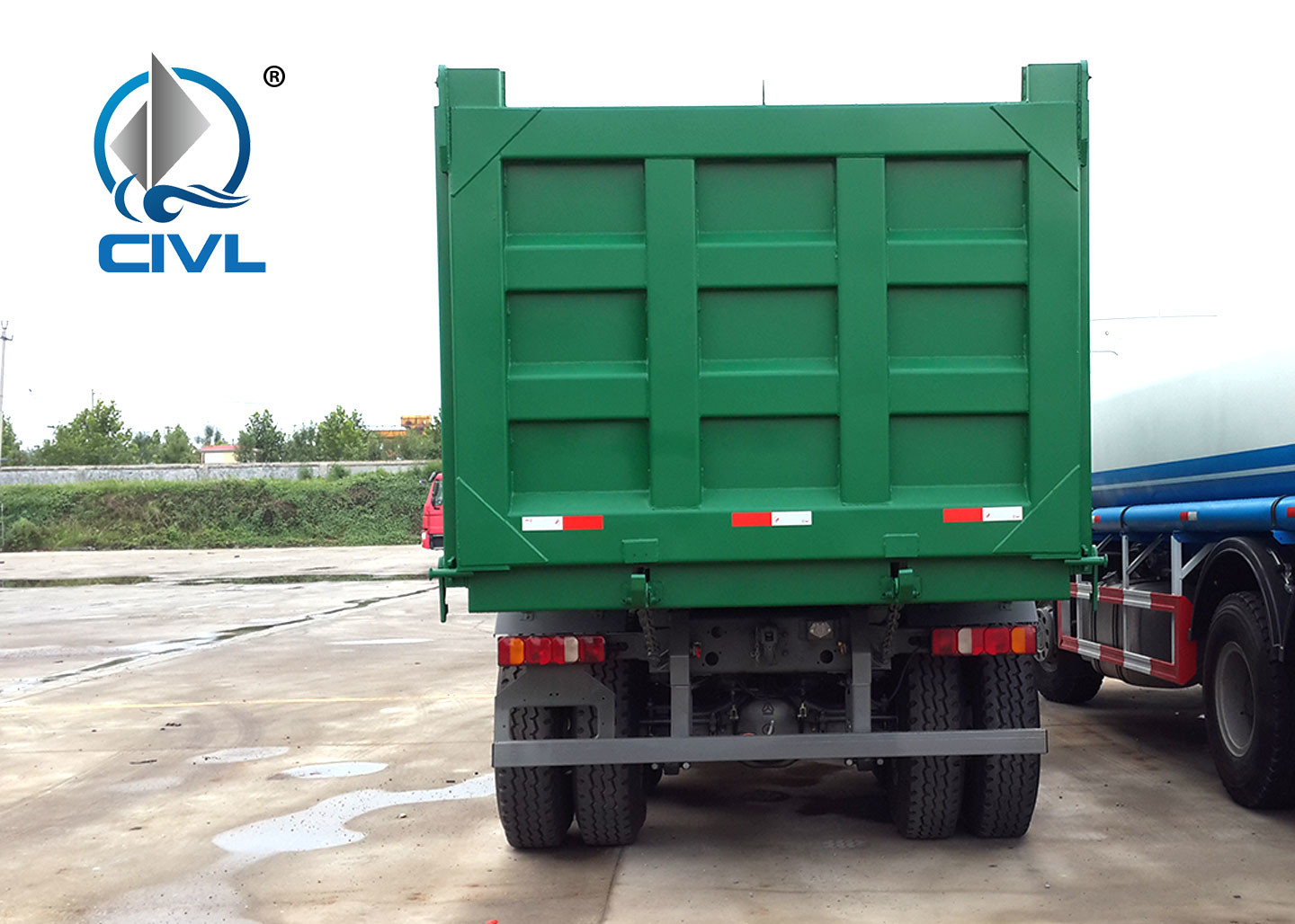

Sinotruck Howo A7 Heavy Dump Truck 6 X 4 Tipper Dumper 40 tons capacity dump truck Euro 2 Engine color green

Brand Name : sinotruck

Model Number : CVZZ3257M3247N1

Place of Origin : China

MOQ : i unit

Price : usd per unit

Supply Ability : 50 units per week

Packaging Details : nude

Certification : iso ccc

model : CVZZ3257M3247N1

brand : sinotruk howo

color : option

fuel : diesel

tyers : 12.00-20

Drive wheel : 6x4

Condition : New

Contact Now

Drive Wheel: 6x4

Capacity (Load): 31 - 40t

Horsepower: 251 - 350hp

Condition: New

Transmission Type: Manual

Emission Standard: Euro 2

Fuel Type: Diesel

Engine Capacity: > 8L

Gross Vehicle Weight: 25000

Place of Origin: Shandong China (Mainland)

Brand Name: SINOTRUK

Model Number: CVZZ3257M3247N

Dimensions (L x W x H) (mm): 7665*2496*3490

Color: as you like

SPECIFICATION:

Truck Model No:

CVZZ3257M3247N1 A7E/300/K32/6*4WA

Gross weight kg

25000

curb weight kg

11950

Rated load quality kg

12920

Max. Speed (Km/h)

78

Cab

A7-W low floor board long cab with one sleeper, with air conditioner

Engine

Make : SINOTRUK

Diesel: 4-stroke direct injection diesel engine

Engine model : WD615.87, EURII emission , new design on intake & exhaust system, power and fuel economy get improved

6-cylinder in-line with water cooling, turbo-charging and intercooling

Max. output : 336Hp (221 Kw ) at 2200 rpm

Displacement : 9.726L

Transmission

HW15710 ,10gear transmission SINOTRUK 10 forward & 2

Ratio:14.28

Torque: 1900Nm

clutch

SINOTRUK Φ430 C size clutch

Driving Axle

AC16

Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires

Ratio:4.77

Front axle

HF9

steel-cast 9T font axle,stick brake

Braking system

Service brake: dual circuit compressed air brake

Parking brake: spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Option:ABS

Electrical System

Operating voltage:24V, negative grounded

Steering

ZF8098 German Hydraulic steering with powder assistance

Wheel & Tyres

12.00-20

No.of Tyres:10+1

No. of Spring

10/12

Front/ Rear axles loading capacity (kg)

7000 /18000

No. of axles

3

Wheel base mm

3225+1350

Front/ Rear wheel track mm

2041/1830

Front/Rear hanging mm

1540/1550

Approach/ Departure angle (°)

20 /29

Dimensions(L×W×H) (mm)

7665*2496*3490

Van dimension mm

4800*2300*1500 F style lifting cylinder

Thickness: floor 8mm side 6mm

Sinotruck Howo A7 Heavy Dump Truck 6 X 4 Tipper Dumper 40 tons capacity dump truck Euro 2 Engine color greenSinotruck Howo A7 Heavy Dump Truck 6 X 4 Tipper Dumper 40 tons capacity dump truck Euro 2 Engine color greenSinotruck Howo A7 Heavy Dump Truck 6 X 4 Tipper Dumper 40 tons capacity dump truck Euro 2 Engine color green
