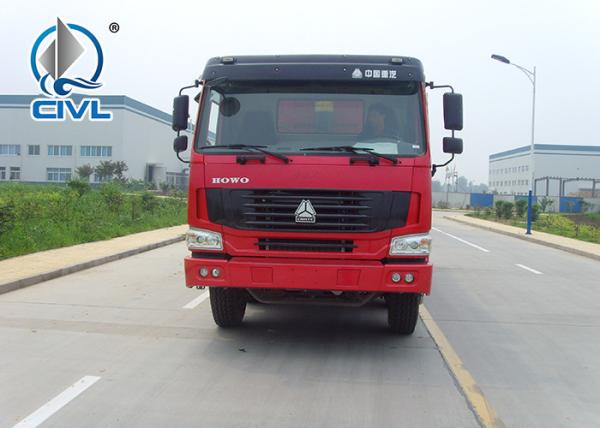

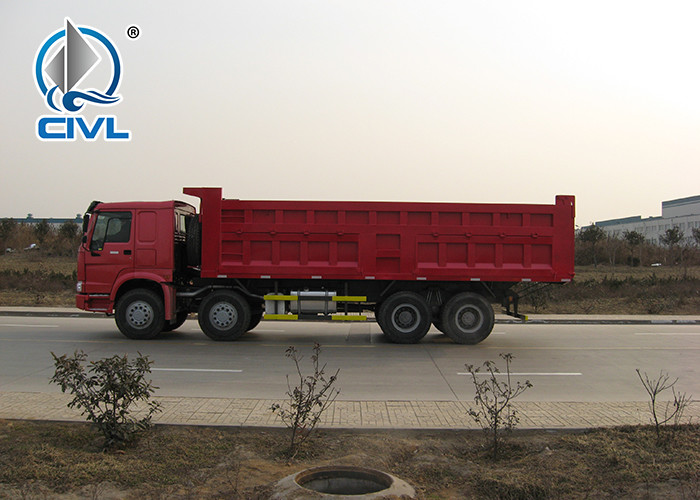

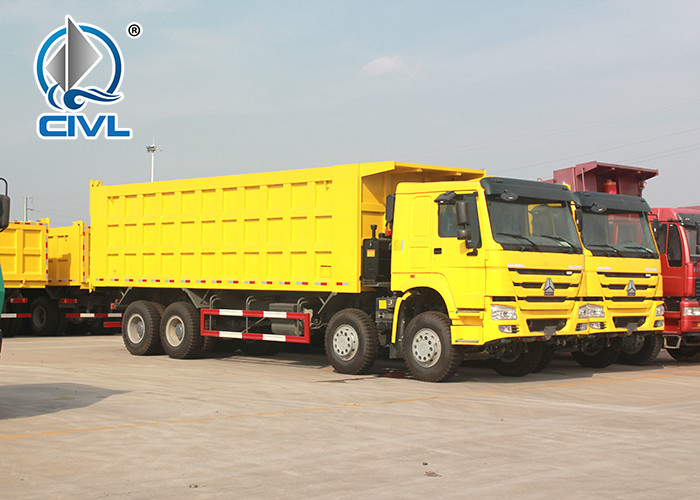

SINOTRUK HOWO Tipper Dump Truck 371HP 8x4 RHD 60-70tons 20-35CBM for Mininig using
Both the technical department or sales staff, during the interview, China heavy staff sincerely revealed when their own hands to create high-end heavy truck is recognized by the market after the joy of love. But most of them are proud of, many other domestic manufacturers no batch assembly high-end configuration, is China heavy truck the first batch assembly listed and recognized.
Specification:
| SINOTRUK HOWO Tipper Dump Truck 371HP 8x4 RHD 60-70tons 20-35CBM for Mininig using |
| Model | ZZ3317N3867W |
| Drive Type | 8×4 |
| Engine | | WD615.47 , 371HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 1800+3800+1350(mm) |
| Overall dimension | 10445×2496×3450(mm) |
| Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 15120(Kg) |
| Gross weight | 31000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1) Good quality
2) competitive price
3)usually choose the standard cargo body structure
4)using the good quality steel plate, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
6)excellant apperance of cabin, safety, reliable
7)competive price, cost-effective
8)quick and efficient spare parts supply bring you more convenient
9)fast delivery time, we can arange production according to your needs exactly and
quickly
10) professional import and export dealing precedure, make customs clearance more high efficiency
11) low fuel consumption
12) strong enough engine
13)with all kinds of truck model, which can fulfil your requirements
14)the key parts adopt the world's top technology products
15)based on strong technical support and top level technology make the trucks with high
quality and more reliable
16) good after sales servie
warehous ;
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
