336hp 371hp 10 wheel 30 ton rhd HOWO SINOTRUK Euro 2 tipper truck dumper truck 6x4
Description:
336hp 371hp 10 wheel 30 ton rhd HOWO SINOTRUK Euro 2 tipper truck dumper truck 6x4

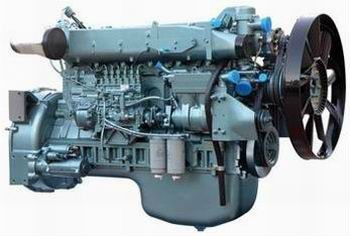

Engine
- Engine brand: SINO BRAND
- Engine model: WD615.47 Euro II
- Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
- Displacement: 9.726 liters
- Max. output: 371hp@2200rpm
- Max torque: 1460NM@1100-1600rpm
Gear box
Gear box:HW19710
Clutch: 430, hydraulically operating with air assistance
Steering: integral type power-steering
Specification:
| Howo dump truck basic | Made | SINOTRUK |
| Series | HOWO |
| Howo dump Model | ZZ3257N3647A |
| Howo dump Driving Type | 6x4 |
| Howo dump Engine | Howo dump Engine model | WD615.47 |
| Howo dump Engine Type | 6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine |
| Howo dump Maximum output | 371 hp (247 Kw) at 2200 rpm |
| Howo dump Displacement | 9.726 L |
| Bore | 126 mm |
| Stroke | 130 mm |
| Compression ratio | 29.8 hp/l |
| Specific fuel consumption | 195 g/kWh |
| Howo dumpTransmission | Model | HW15710(Fuller technology) |
| speeds | 10 speeds |
| Howo dump Axle | Front Axle | 9T |
| Rear Axle | 16T |
| Howo dump Fuel tank | Aluminium fuel tank | 300 L capacity with locking fuel cap |
| Howo dump Steering | Model | ZF power steering, modol ZF8098, hydraulic steering |
| Howo dump Tyre | Radial Tyre | 12.00R20 |
| Howo dump Driver's Cab | Flat roof cab with bed | all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner |
| Howo dump Dimensions mm | Wheel base | 3600+1350 |
| Overall dimmensions | 8145*2496*3386 |
| Dimension of the rear dump body | 5400*2300*1400(17M3) |
| Howo dump Performance | Maximum driving speed (km/h) | 75 |
| Maximum gradeability (%) | 40 |
| Minimum ground clearance (mm) | 314 |
| Minimum turning circle (m) | 20 |
| Fuel consumption (l/100 km) | 28 |

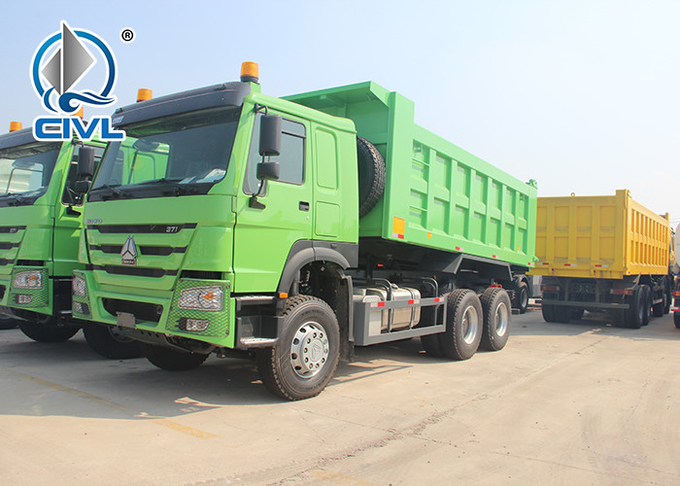

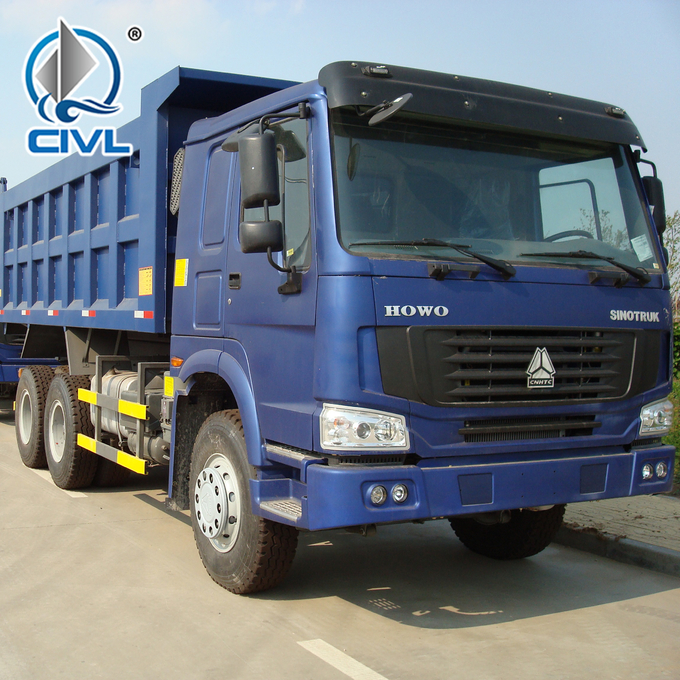

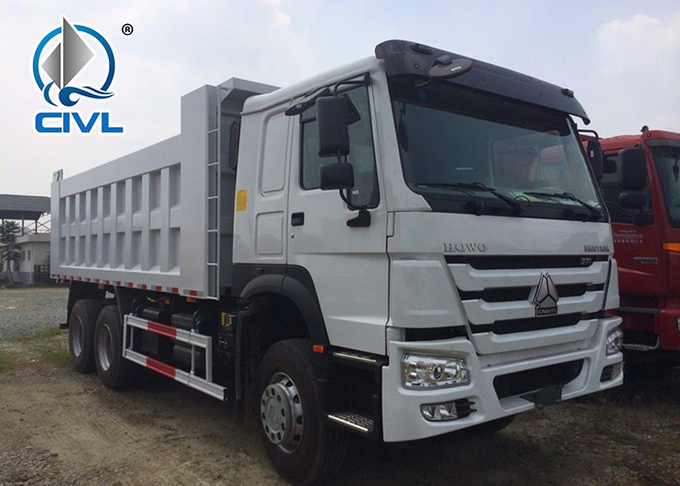

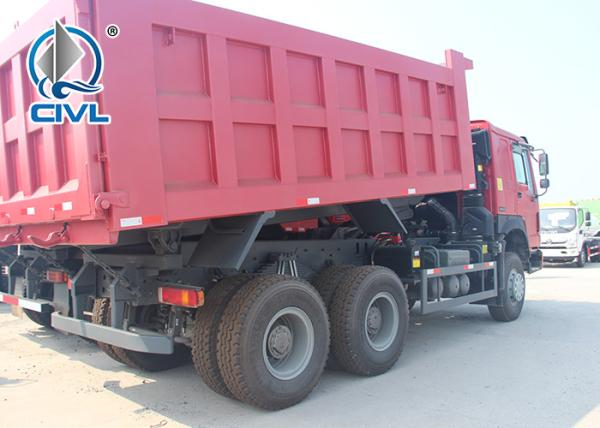

Photos:
Delivery:
PACKING AND SHIPPING
All the truck, semi trailer and spare parts will be polished with wax before shipping, and suitable shipping way will be according to the truck type and destination port to choose.
For truck and semi trailer,There are three shipping ways can be choose, RORO, BULK CARGO VESSEL & FLAT RACK CONTAINER,
40 HQ Container suit for flatbed & cargo semi trailer and spare parts only, Please kindly check the pictures as below, Thanks
Any interest let me know freely
With over 17 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .
Exporting to more than 50 countries for 14 years .
For more information ,contact us now.
