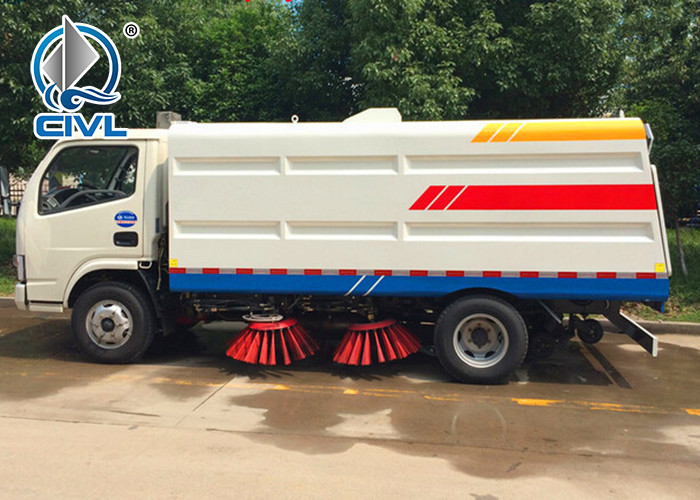

Light Sweeper Truck With Stainless Steel 5m³GarbageTank and 1100LWater Box
Airport runway sweeper sweeps roads mainly by suction and blowing functions, and by auxiliary methods such as flushing and magnetic suction and wet dust removal. The vehicle is suitable for road cleaning of city streets, squares, airports, wharfs, etc. It works by picking up gravel, rind, scrap of paper, cigarette end, kernel, plastic bag, stone, brick, grains of sand, dust, and etc.
"Airport Runway Sweeper CLW features :
"1. It is set up a complete new pneumatic conveying system with parts wind volume filtration for parts reverse blow circulation as well as wind channel switch air damper during rainy day operation, which can realize working condition switch between dry dust collection operation and sweep operation in rainy day, so which can working in all weather condition without reference to weather condition.
2.This road sweeper truck is an environment-friendly special purpose sweeper, which integrates sweeping, sprinkling, and garbage transportation.
3. The cleaning system is driven by advanced USA EATON brand hydraulic motor to guarantee the power and reliability during work.
4. When cleaning, the sweeping brushes softly contact the ground, largely reducing their wear and extending their working life.
5. The suction unit features elastic collision and avoidance to ensure the safety during the cleaning process.
6. Equipped with oversized three layers of filter system, dust filtering ratio up to 99.99%, extending engine's life.
7. The electromagnetic hydraulic valve is SUNNY brand from USA, stable operation.
8. Equipped with a backup hydraulic unit, which is used to perform some actions, in the road sweeper truck can not start.
9. The main and auxiliary engines are of the same brand, so it is relatively easy to maintain.
10. Stainless steel water tanks, garbage can makes the working life longer.
11. Customized suction fan provides ample wind force; ensure a smooth and efficient completion of work.
12. Equipped with warning light that ensure the vacuum road sweeper truck working safely during the operation.
Specifications:
| Product | Howo Sweeper road truck |
| Cab | Single row,Left/right hand drive with AC |
| Chassis | Brand | Sinotruck |
| Chassis model | ZZ5132168WW |
| Drive type | 4x2 |
| Tire Spec. | 185R14 |
| Tire Numbers | 4 |
| Braking System | air braking |
| Clutch | Uniwafer,dry clutch,hydraulic,remote control |
| Transmission | manual |
| Engine | Model | 4A13L |
| Horse Power(hp) | 88 |
| Displacement(cc)/ Power(kw) | 1298/65 |
| Emission | Euro III/Euro IV |
| Main Parameters | Overall dimension (L*W*H/mm) | 4990x1620,1690x2120 |
| Wheelbase(mm) | 3050 |
| Axles No. | 2 |
| GVW(kg) | 2860 |
| Curb Weight(kg) | 2630 |
| Leaf spring No. | 5/5+1 |
| Approaching/Departure Angle(°) | 40/17 |
| Front/Rear track(mm) | 1410/1350 |
| Front/Rear suspension(mm) | 560/1380 |
| Max speed(km/h) | 100 |
| Front/Rear Axle Load(kg) | 850/2010 |

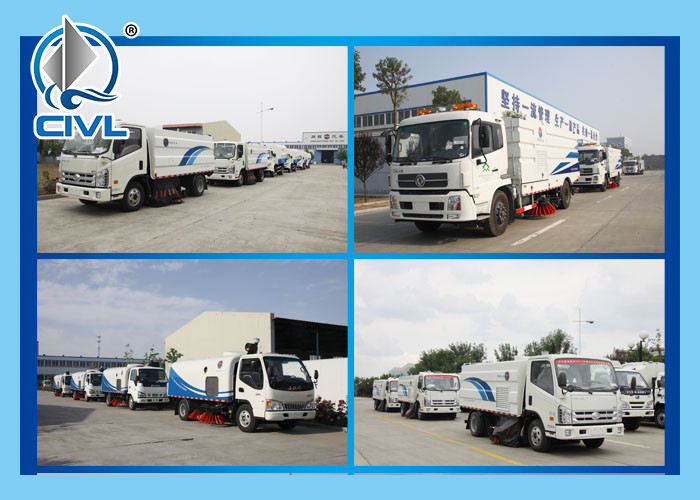

Photos:
