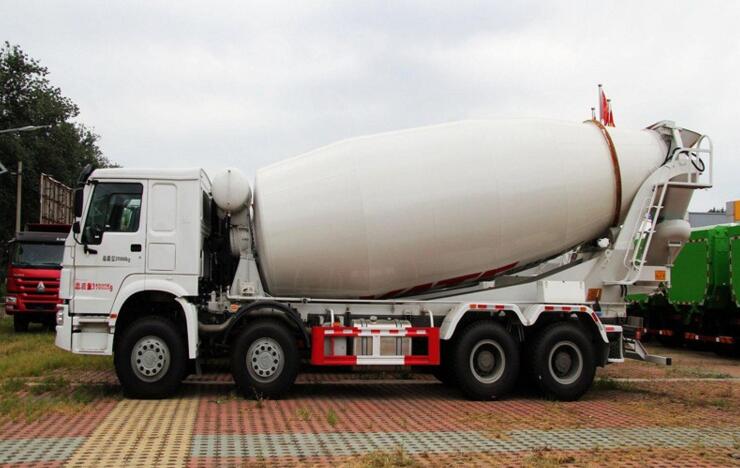

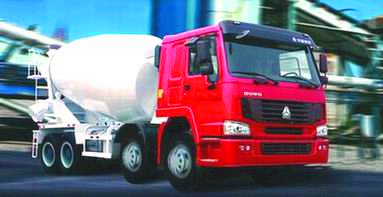

8 x 4 25 CBM Volumetric Cement Mixer Truck of Sinotruck With 1% Rate Ratio
Description of Brand
-
SINOTRUCK SWZ series trucks own the elegant appearance, strong operation system and excellent safety.
-
Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Advantages of the product
1. Cabin designed by Benz, very confortable and safety for drivers
2 The chassis and axles made with MAN`s technique , it can be overloading.
3. Low consumption of fuel and many horse power to choice.
4. Strong frame and tire can fit the rough road.
5. Powerful engine can give you good driving force.
6. High speed of input and output cements
7.Low rest rate
8. High quality of washing system, hydraulic system, operating and heat dissipation system
9.Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75°, and reducing to 60° upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio, almost zero. Inclination is between 12-15°, improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
Parameters
| riving Type | 8*4 |
| Cabin | SWZ Standard Cab,Lengthed cab |
| Wheel base (mm) | 1800+3200+1350 mm |
| Transmission | HW15710 |
| Engine | WD615.69 |
| Overall Dimension(mm) | 10200×2490×3950 MM (L*W*H) |
| Tire | 11.00-20 optional 12.00-20 |
| Total mass(kg) | 31000 |
| Kerb mass(kg) | 14110/9780 |
| Rated capacity(kg) | 16760 |
| Approach angle/Departure angle | 20.5/(22 31) |
| Max.speed(km/h) | 75 |
| Cargo dimension(mm) | 10200×2490×3950 (L*W*H) |
|
Mixing tank volume(cbm) | 10.12 |
Photos
FAQ:
1.Terms of paymemt
30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished
2. What’s your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
3. Can you satisfy my special requirement?
Definitely! We can discuss the practicable plan and produce it as your request.
4.What’s your warranty?
All of our trailers are produced strict with ISO standard,you needn’t worry about it.Certainly,if your trailer parts wear out,we can provide suitable parts for you.
