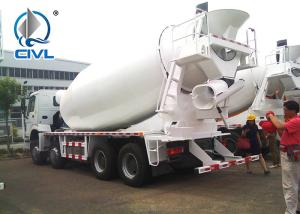

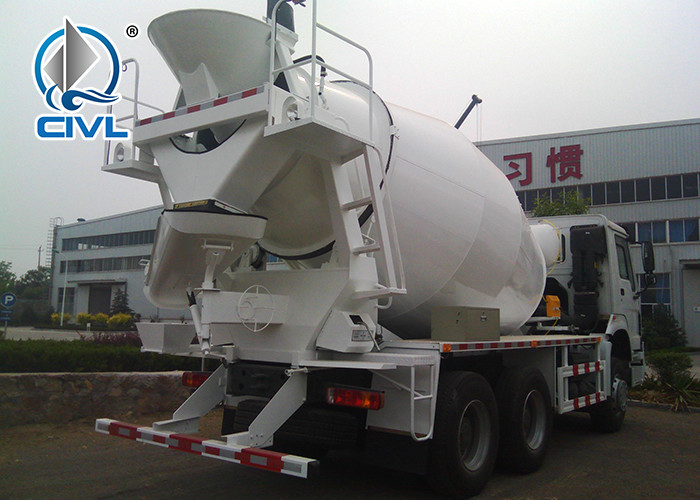

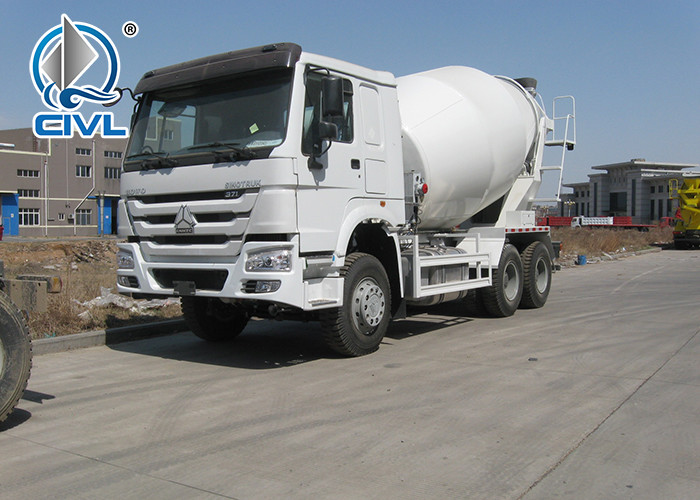

Sinotruck HOWO 6 x 4 336HP Cement Concrete Mixer Truck With 10m³ Tank
Our company produces concrete Mixer truck, good uniformity, feeding speed, low residual feeding rate, reliability hydraulic transmission system, convenient operation, beautiful appearance. The mixer truck also has rotary stability, reliable performance and convenient operate, long service life, etc.(Concrete Mixer Truck)
Specifications
| Model | ZZ1257N4047D1L |
| Name | 380HP 6x4 Mixer truck |
| | Model : T12.38-40 |
| Engine | 6 cylinder in line,water cooling, 4 strokes,turbo-charging intercooling,EGR, Euro IV |
| Basic information | Driving mode:6x4 |
| Size: L*W*H 10820*2496*3980mm |
| Wheel track: Front 2022/2041mm |
| Rear 1830mm |
| Wheel base: 1800+360+1350mm |
| Vehicle weight: 15450KG |
| Rated loading capacity :15420KG |
| Approach angle: 19 degree |
| Departure angle: 30degree |
| 10 forward speed & 2 Rear |
| Wheel | Quantity :10 |
| Tyres: 12.00R20 |
| Chasis | Rear axle: Sinotruck AC16 |
| Ratio:4.77 |
| Loading capacity:16000KG |
| Quantity of leaf spring ;10/12 |
| Fuel capacity | 200L |
| Volume of mixer | 8m3 |
| Transimission | HW19710 |
Truck series:
1. dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)
Machine series:
1.Wheel loader,Backhoe loder,
2.Roller,
3.Motor Grader,
4.Bulldozer,
5.Excavator,
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),
7,forklift and 45t contain reach stacker
8,paver and so on
Trucks/ Heavy Trucks/Heavy Duty Truck/Special Vehicles/Tipper/Dumper/Dump Truck/Dump Tipper/Tipper Truck, Special Dump Truck/Tractor Truck/Trailer/Prime Mover/Semi Trailer/Special Trucks/Lorry/Cargo Truck/Van/Goods Vehicles/Lorry Truck/Concrete Mixer/Cement Mixer/Mixer Truck/Truck Mixer/Concrete Pumper/ Concrete Mixer Truck/Mini Truck/P/Transporter/Water Tank/Tank Truck/Oil Tank/Powder Tank /HOWO Refuelling Truck/Water Tank Truck/Sprinkler/Road Sprinkler/Road Sweeper/Terminal Truck/Terminal Tractor/Garbage Compactor/Garbage Truck/Refuse Compactor/Bulldozer/Wheel Loader/Grader/Excavator/ Crane/Truck/Truck Crane/Refrigerated Truck/Nsulated Truck/Box Truck/Mobile Telecommunication Truck/Special Automobiles/ Low Bed Trailer with Two Axles/40‘ Contrainer Trailer/
Workover Rig Chassis For Oil Field/ Powder Material Transportation Truck, Wood Transportation Truck, Vehicle Crane,
