6x4 Heavy Duty Commercial Trucks Concrete Mixer Truck Diesel Fuel
Concrete mixing truck Description:
1.SINOTRUCK HOWO trucks own the elegant appearance, strong operation system and excellent safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC),
and mainly deal with heavy duty trucks /all spare parts and service We supply
HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4,
and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks,
log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power,
and loading capacity cover from 5 tons to 50 tons.
howo 6x4 mixer truck specification:
| SINOTRUK HOWO 6X4 MIXED TRUCK LHD / RHD |
| Model | ZZ5257GJBM3647 | Driving type: 6X4 |
| Cabin | HW70 standard cab / HW76 lengthened cab, basic equipment: no / one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle,four points floating air spring suspension and shock absorbers for off-highway vehicle;transverse stability installation,double locking safety belt and external sun shade for various mode. |
| Engine | Horse power: | 266HP(196KW) / 290HP(213KW) / 336HP(247KW) /371HP(273KW) |
| Displacement: | 9.726 (L) liter |
| Max torque: | 1100Nm / 1160Nm / 1350Nm / 1500Nm at 1100-1600 rpm |
| Cylinder diameter / stoke: | 126mm/130mm |
| WD615.62 / WD615.87 / WD615.69 / WD615.47 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG. |
| Gear box | Model: | HW13710 / HW19710 |
| Speed: | 10drive, 2reverse. Max torque:1390NM / 1900NM |
| HW13710 SINOTRUK 10 speed manual type transmission, the first shift gear ratio: 14.08, small ratio grade difference and big first shift ratio produce an excellent performance on start up Gear ratio:1=14.08, 2=10.47, 3=7.82, 4=5.82, 5=4.35, 6=3.24, 7=2.41, 8=1.80, 9=1.34, 10=1, R1=12.67, R2=2.91 HW19710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18 |
| Front axle | 1 X HF9, 9 ton axle load, rigid stub axle with double T- cross section and dish / drum brake. |
| Rear axle | 2 X HC16 / AC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing.AC16 heavy casting hub reduction drive axle, with super loading ability, excellent performance on start-up with heavy load and slope climbing. |
| Steering | ZF8098 power steering, hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. |
| Brake | Service brake: Dual circuit compressed air brake. |
| Parking brake: Spring energy, storage air-break brake. |
| Engine brake: Engine exhausted gas brake. |
| Electric Equipment | Operating voltage: | 24V negative grounded |
| Battery voltage: | 12V/165Ah,cigar lighter |
| Tire & Rim | 11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5 |
| Overall Dimension (mm) | 8,715 X 2,496 X 3,850(L X W X H) |
| Mixer Ball Drum | Capacity7 / 8 / 9 m³; Material: 16Mn, 5mm high-quality wear-resisting manganese alloy steel. |
| Total Mass (Kg) | 25,000 |
| Curb Weight (kg) | 13,060 |
| Maximum Speed (km/h) | 90 / 102 |
| Color | White, red, yellow, green, blue. |

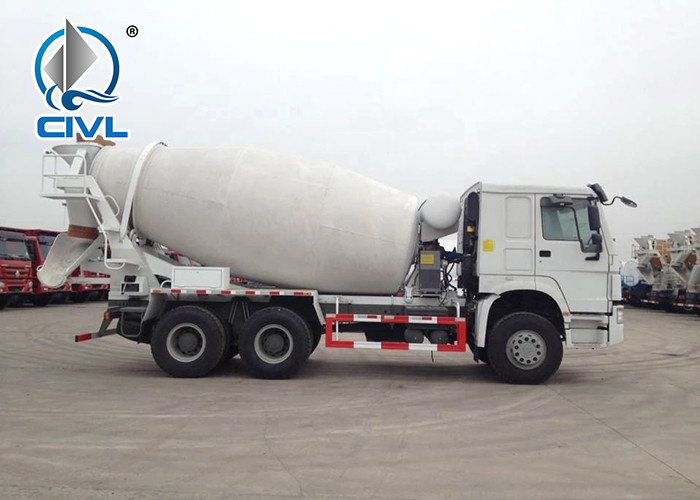

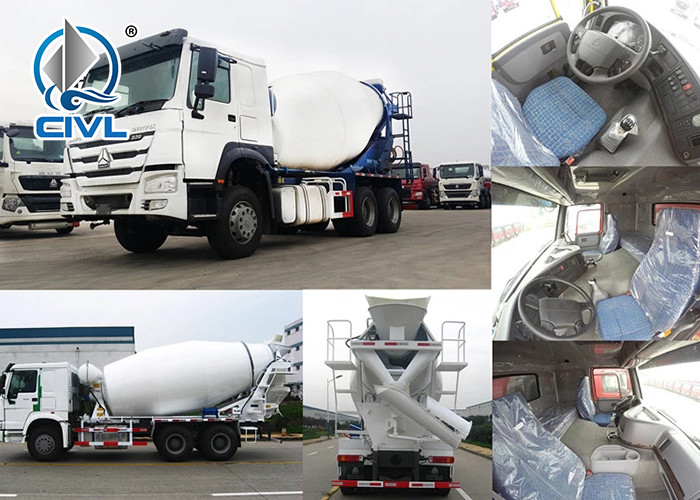

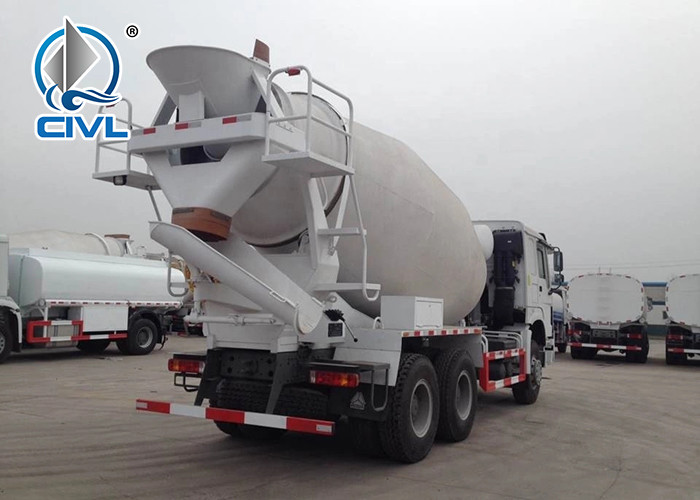

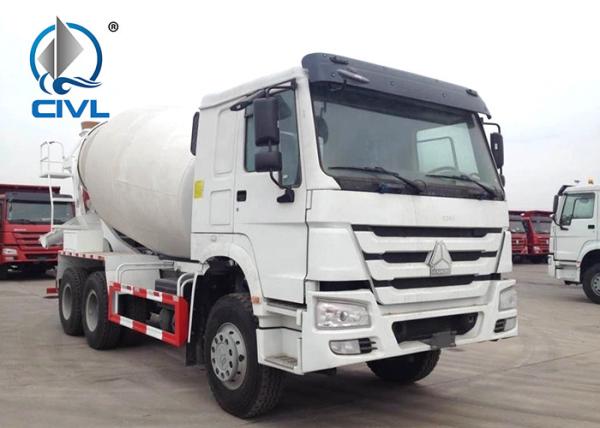

Photos:
