Description:
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Specification:
| Dropside Cargo truck Chassis SINOTRUK HOWO ZZ1257N4341W Green color export to Ethiopia |
| Chassis Model | ZZ1257N4641W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW13710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4600+1350(mm) |
| Dimension of cargo body | 7650*2300*800mm, Bottom:3mm, Side:1.5mm |
| Overall dimension | 10305×2496×3050mm |
| The curb weight | 11450(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal
and so on .
Competitive Advantage:
High Safety
1. Four independent braking systems
Our cargo trucks adopt four direct-operated pneumatic braking systems (front axle brake, rear axle brake, parking emergency brake,
engine auxiliary brake), with automatic clearance adjustment. This, coupled with modem brake devices
like ABS, makes your driving highly reliable and safe.
2. Wide-angle rear view mirror
The luxury wide-angel rear view mirror provides the drive with unobstructed all-around visibility, further assuring
driving safety.
Low Fuel consumption
Low fuel consumption: 1200-1200 turn over wide economic speed low fuel consumption, a new combustion
principle, the second generation of Bosch common rail fuel injection system, high economic benefit.
Oil change interval is lengthen: euro Ⅱ consumption, road transport vehicles from the factory to change the oil for the first time, a maximum mileage of 30000 kilometers, so there is low transport cost.
Aesthetic Design
Our cargo trucks are outlined with full and smooth lines, which better meets aerodynamic principles and greatly reduces the drag coefficient, thus significantly improving fuel economy.
Luxury and stylish integral bumper, elegant high-brightness headlights.
New soft interior and dashboard are both aesthetic and practical; detachable combination instrument is convenient to repair and maintain.
Electric window regulator, central electric control door lock

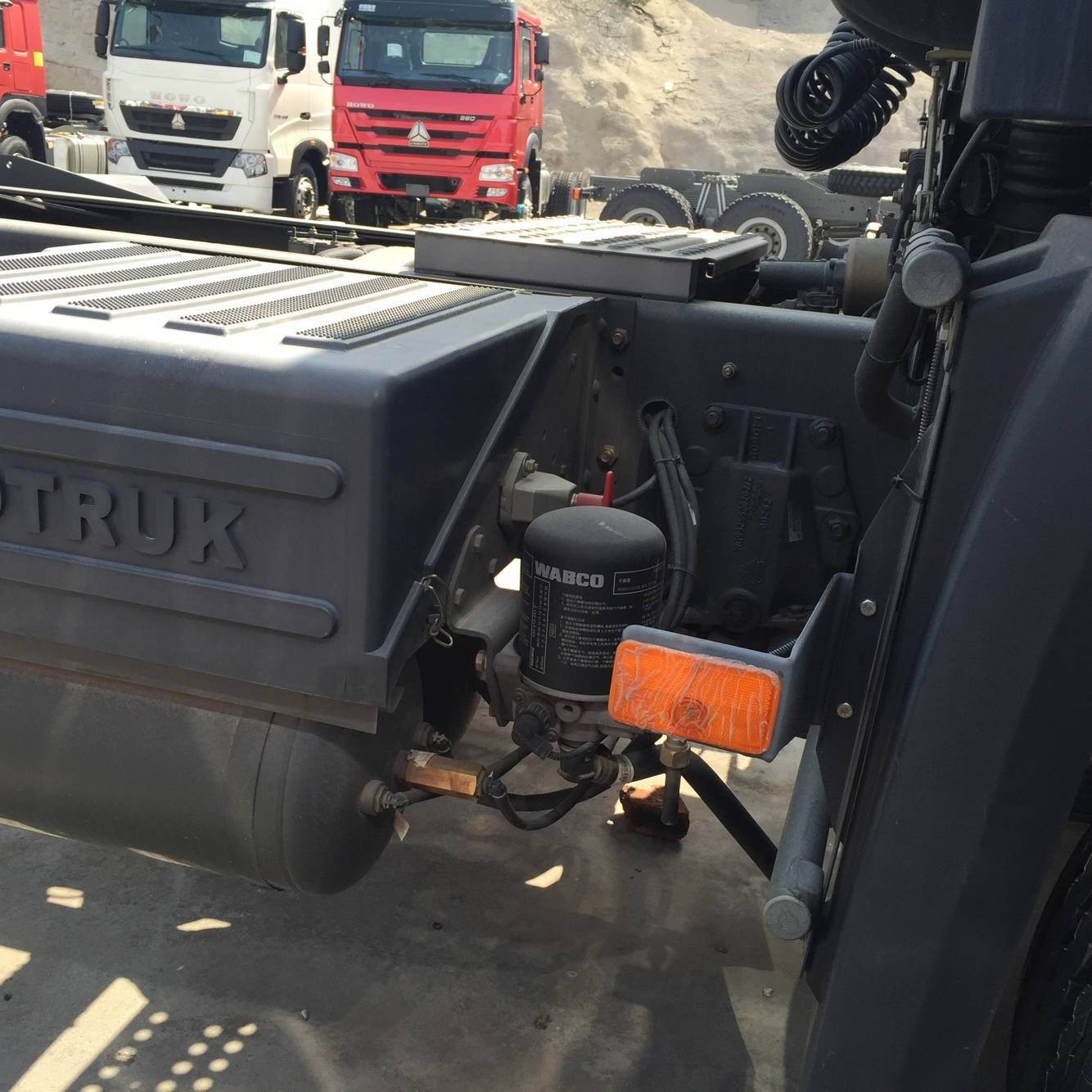

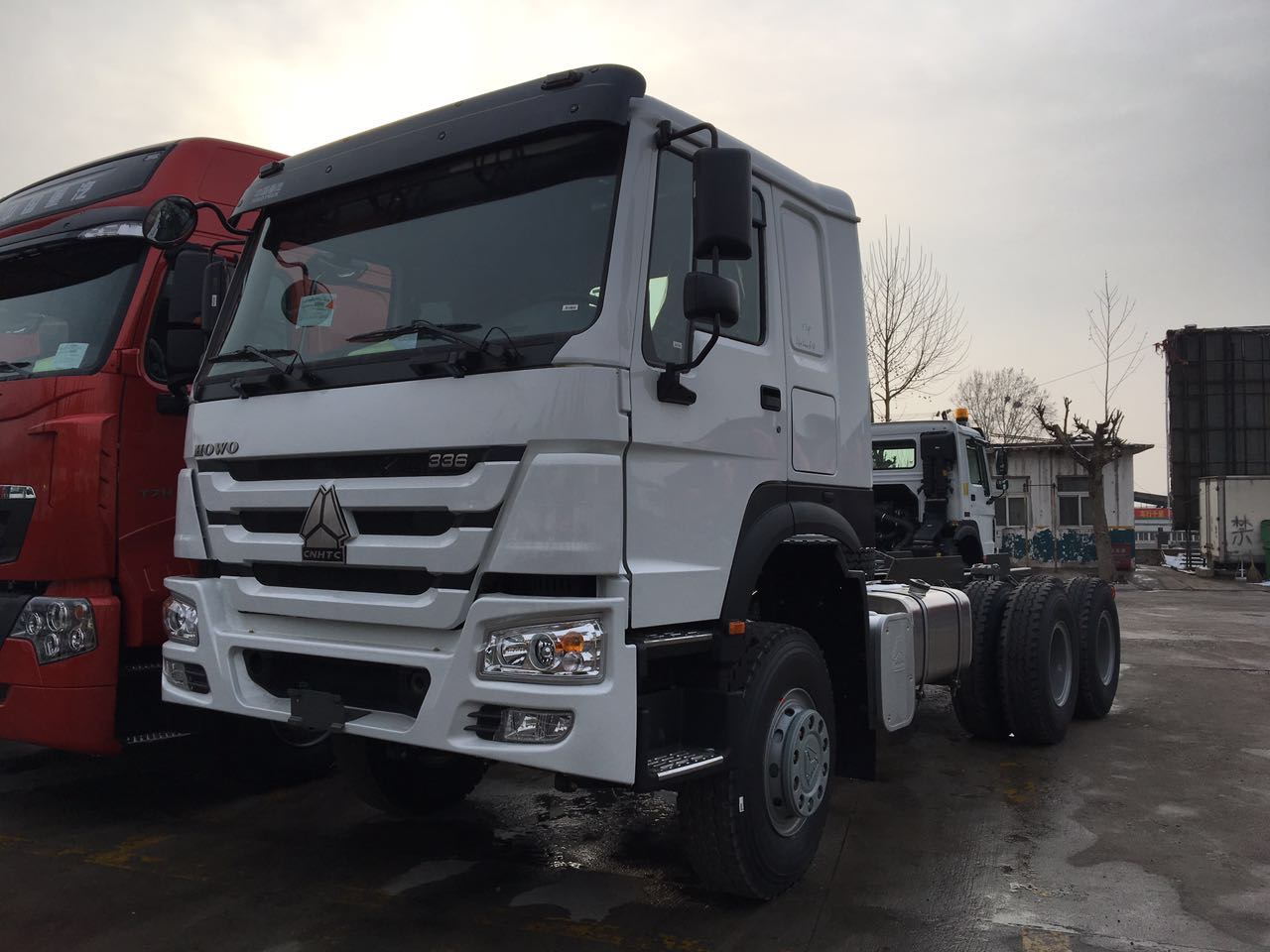

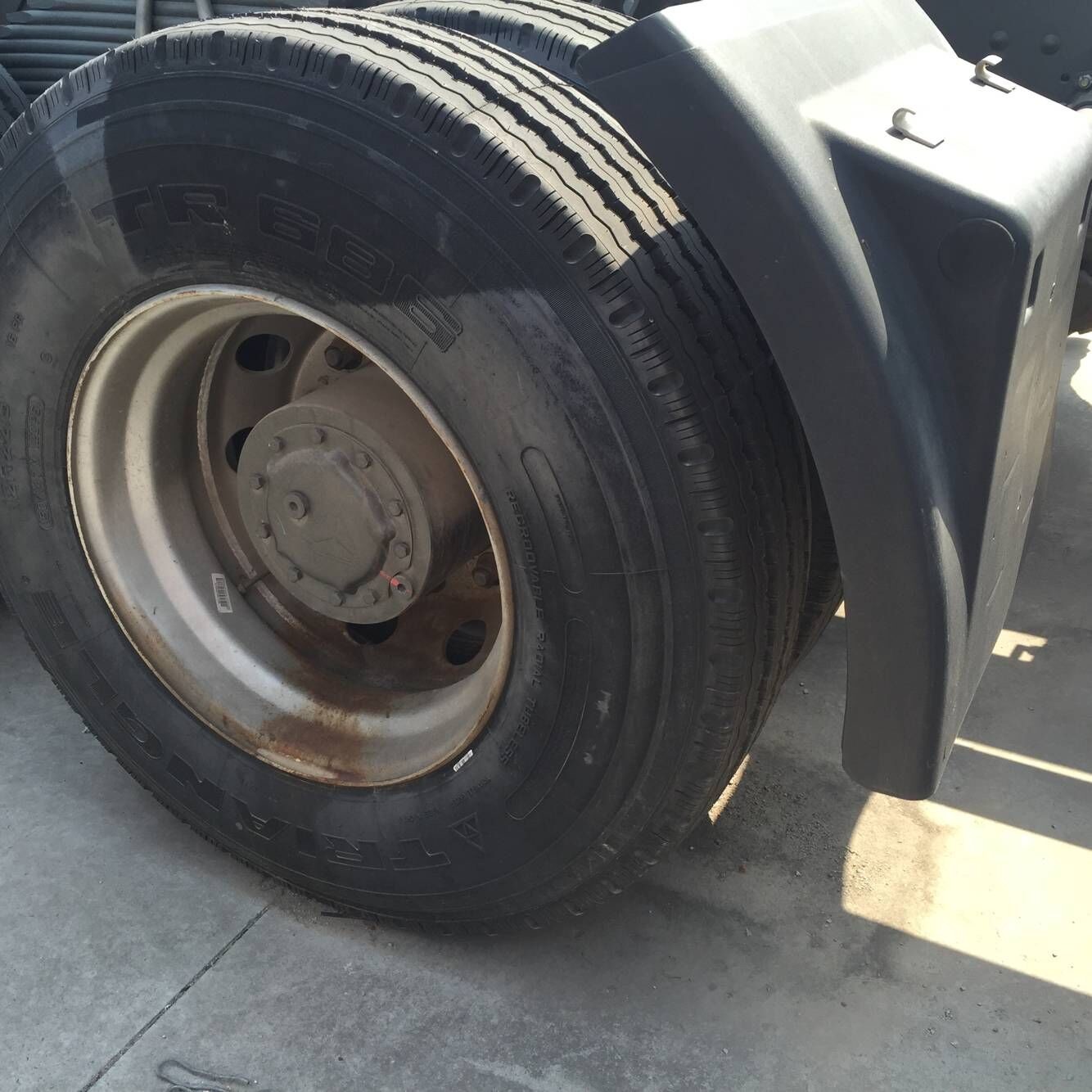

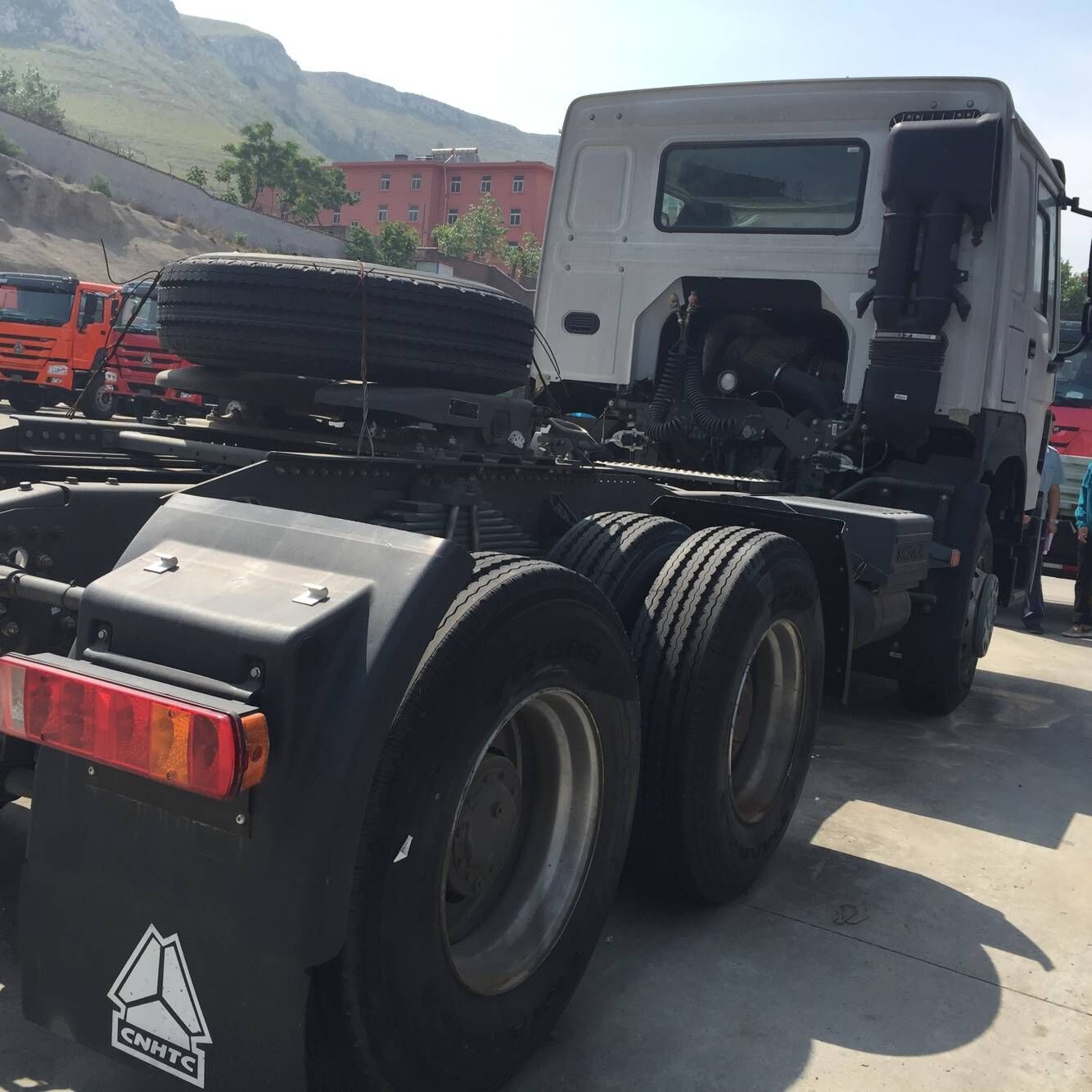

DETAILS PTOS:

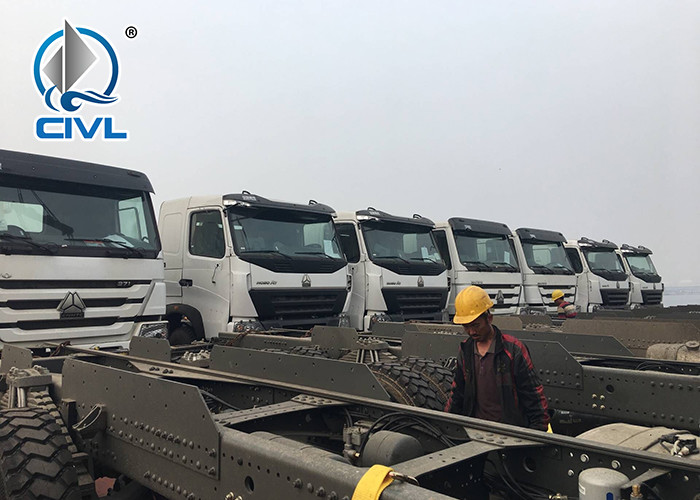

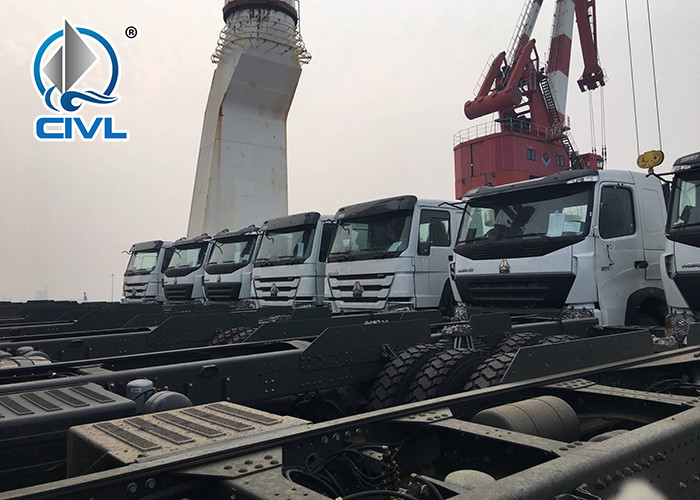

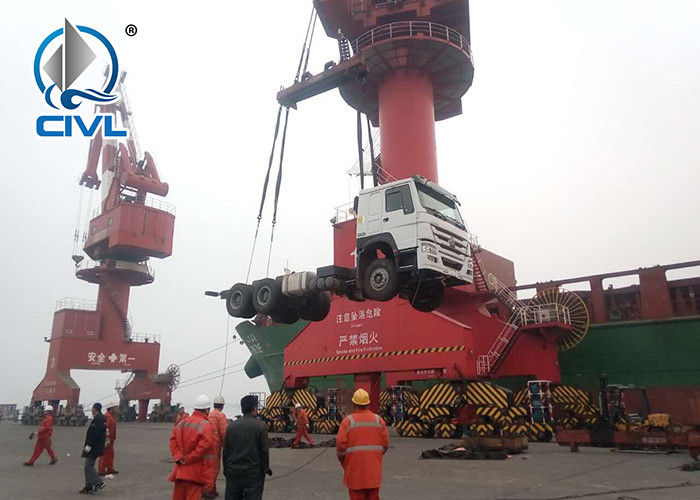

DELIVERY PTOS :
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
