Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

Name: Beiben 1634APZ Heavy Cargo Trucks all wheel drive BEIBEN 6x4 truck Chassis
Brand: CIVL
Price: 1 USD

Quality Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis wholesale

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Price : US $40,000-50,000 / Unit

Payment Terms : L/C, T/T

Supply Ability : 300 UNITS PER WEEK

Delivery Time : Within 35 days

Packaging Details : NUDE

BRAND : BEIBEN

MODEL : 1634APZ

Wheel base : 4800mm

Displacement : 9.726L/Diesel

Driving type : 6x4

Emission : EuroIII EGR

Contact Now

Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

Features:
Packaging Details
wax-coated on roro vessel for Beiben truck shipping
Delivery Time
Shipped in 30 days after payment

Specifications:

Driving type			4x4
Dimension(Lx W x H)(unloaded)mm			8826×2500×3385
Inner dimension (mm)			6500x2300x600
Approaching angle/Departure angle(°)			26/22
Overhang(front/rear) (mm)			1410/2616
Wheel base (mm)			4800
Max speed (km/h)			90
Curb weight (kg)			7960
Engine	Model (WD615.38)		WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
	Displacement (L)		9.726/Diesel
	Bore X stroke (mm)		126/130
	Max power (kw/rpm)		279/2200 (380HP)
	Max torque (Nm/rpm)		1500/1300-1600
	Emission		EURO II
Clutch	Model		Single dry frictional disc, hydraulic boosting
Gearbox	Model		9JS180, mechanism (1800N.m) 9gears, 1reverse gear, manual
Brake system	Service brake		Double circulation air brake system
	Assistant brake		Engine exhaust brake
	Park brake		Potential springs pressing on middle and rear wheels
Steering system	Model		ZF8098, whole circulation in ball, hydraulic booster
Frame	Fish belly, shape, variable width, variable sections, side beam structure
Front axle	Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle	Double-shoe pneumatic brake, casting, double reduction driving axle
Tyre	12.00R20
Electrical system	Battery	2X12V/135Ah
	Generator	28V-35A
	Starter	5.4Kw/24V
Cab	Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly

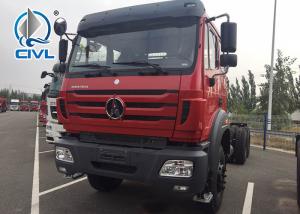

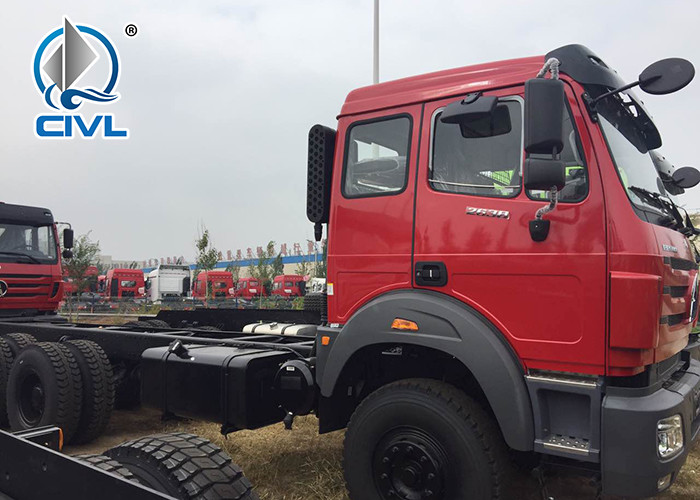

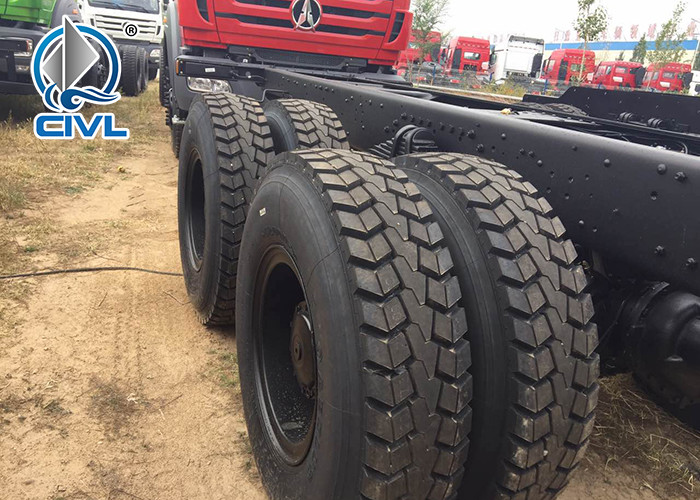

Photo details:

Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis

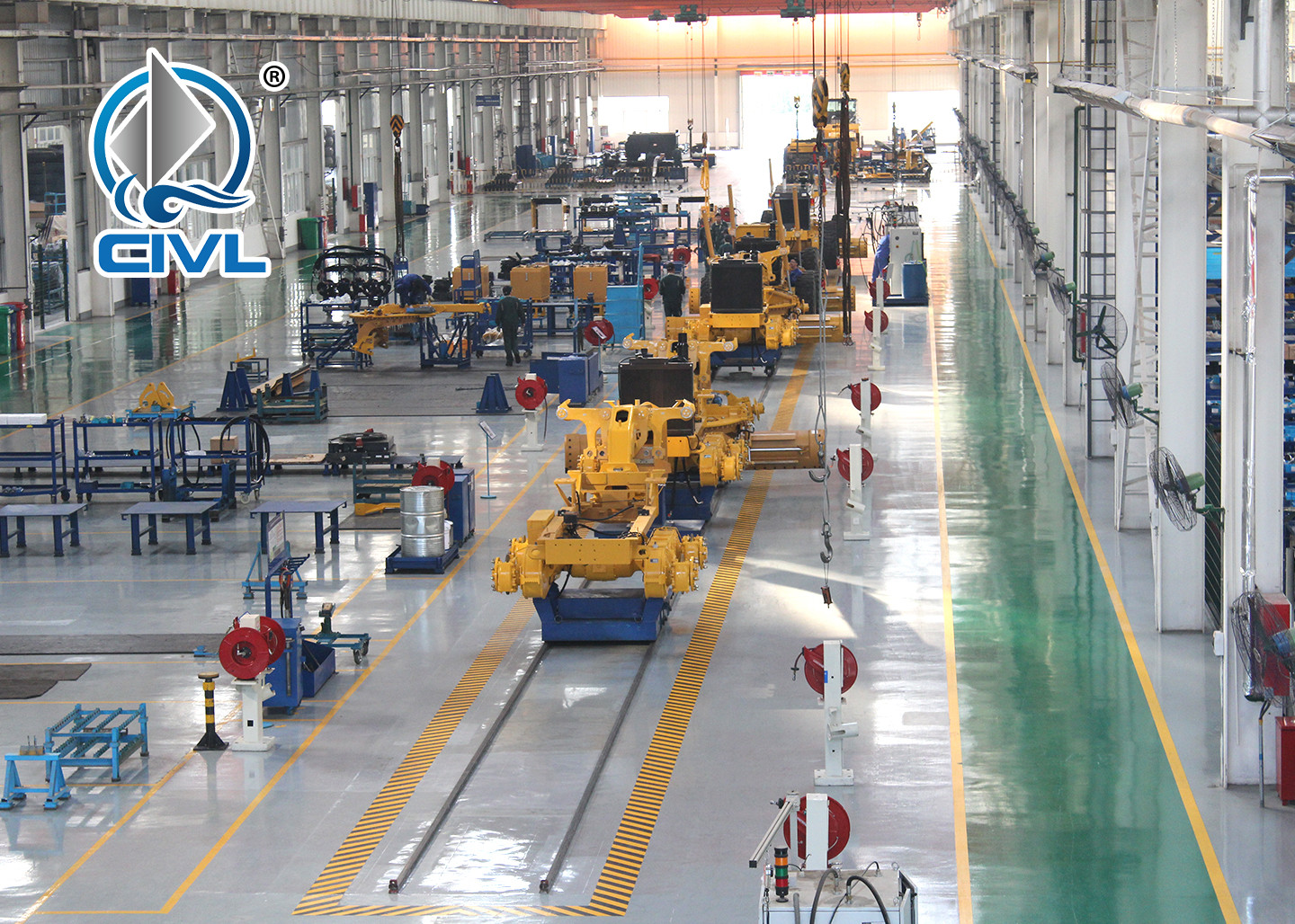

Quality Inspection:

Service:

Pre-service:

Sample testing support.
View our factory.
Design various solutions as buyer's requirement.

After-sale service:

Training how to use and maintain the truck.
Our engineers supply the support of technology.
12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
Parts supply on time.
24 hours service and technology support

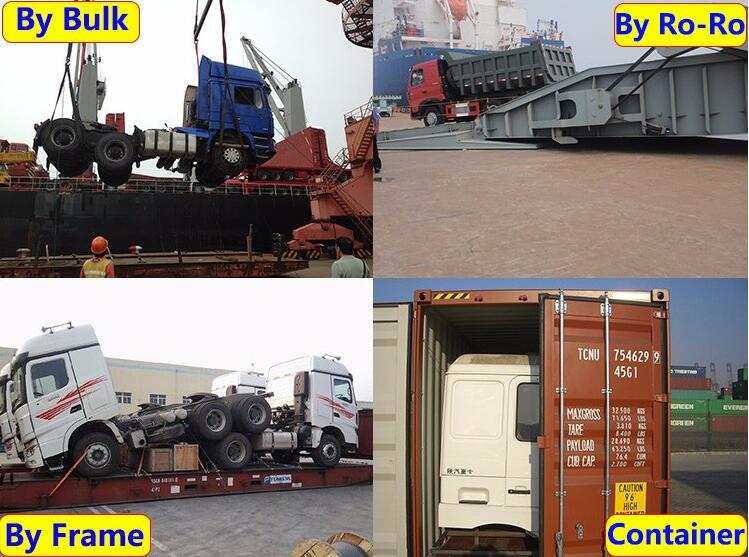

Shipping:
Beiben 1634APZ Heavy Cargo Trucks , all wheel drive BEIBEN 6x4 truck Chassis
