Orange Color BEIBEN NG80 Heavy Cargo Trucks With EuroII Emission Stander And 6X4 10 Tires Weichai Engine 420hp

Brand Name : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 20000units/month

Delivery Time : Within 35 days

Packaging Details : nude

Model Number : CIVL

color : option

warranty : 1year

engine : weichai

bucket : option

Contact Now

BEIBEN cargo truck price NG80 6X4 420hp ethiopia euro truck for sale

1.China famous BEIBEN brand
2.Euro 2 emission,WEICHAI engine
3.Loading capacity: 15Ton
4.High quality and competitive price

5.Best after-sales

Product Description
Traction type 6x4
Driving type Left Hand Driving
Overall Dimension(LxWxH) 9090*2500*3225mm
Bucket Dimension(LxWxH) 7800*2300*800mm
Wheel base(mm) 5950+1450
Curb weight(kg) 11540
Front overhang/rear overhang (mm) 1410/625
Front track/rear track(mm) 1940/1847,1847
Approach angle/Departure angle 26/22

Engine technology,

made in China

 WD12.420

Diesel, 4-stoke Direct injection,6-cylinder in

line, radiator, turbo-charging, water-cooling,

Displacement(L) 9.726
Bore X stroke (mm) 126mm/155mm
Max power(kw/rpm) 420HP/308kW
Max torque(Nm/rpm) 1500NM@1100~1600
Min rate of consuming fuel(g/(kw.h)) 196g/kW.h
Emission standard EURO II
Max speed(km/h) 85
Fuel tanker(L) 400L Al fuel tank
Clutch Model D430 diaphragm type
Gearbox Brand Fuller (Fast)
Model 12JS200T
Shift mode

12 forward speeds;

2 reverse speeds
Steering system Model ZF8098
Frame 300mmx90mmx8+6+8mm
Front axle 7.5T Using front non-driving steering axle
Middle and Rear axle

13t double reduction driving axle

Ratio:5.263
Tyre 12.00R20 Radial Tire
Number of tyre 10+1 spare
Suspension Leaf spring type
Front/rear: 13/13
Color White
Electrical Battery 12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin Beiben NG80B long cabin with single sleeper and air-conditioner

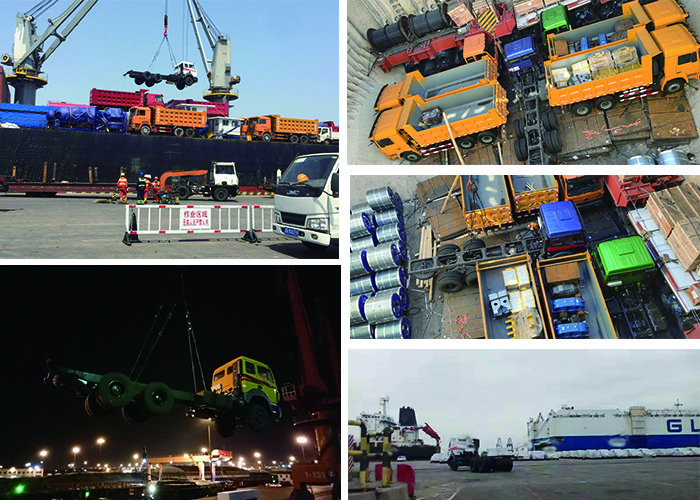

DELIVERY

Orange Color BEIBEN NG80 Heavy Cargo Trucks With EuroII Emission Stander And 6X4 10 Tires Weichai Engine 420hpOrange Color BEIBEN NG80 Heavy Cargo Trucks With EuroII Emission Stander And 6X4 10 Tires Weichai Engine 420hp

Other products:

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
