7 Tons Refrigerated Trucks And Vans LHD 4X2 Closed Van Truck With Frozen Box
Description:
7 Tons Refrigerated Trucks And Vans LHD 4X2 Closed Van Truck With Frozen Box
Which can choose all kinds of Brand, Such as HOWO, Golden Prince, HOWO A7, Hohan, Engine
power have 266HP, 290HP, 336HP, 371HP and so on.
Acoording to the loading capacity we will equipped with suitable Refrigerator, we have many famouse brand, such as Carrier, Thermo and so on.

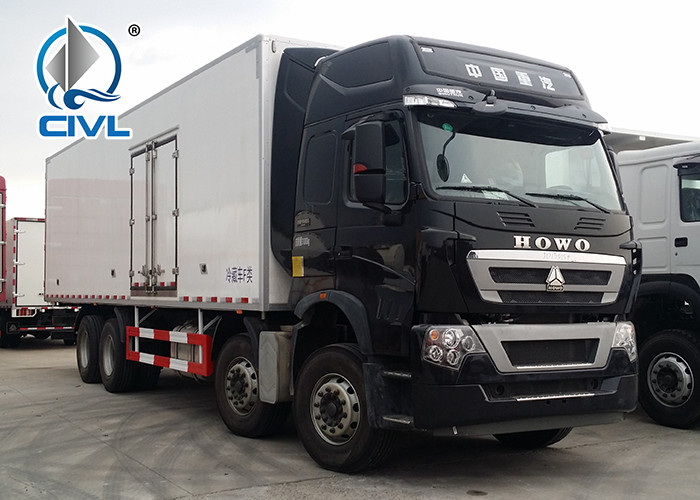

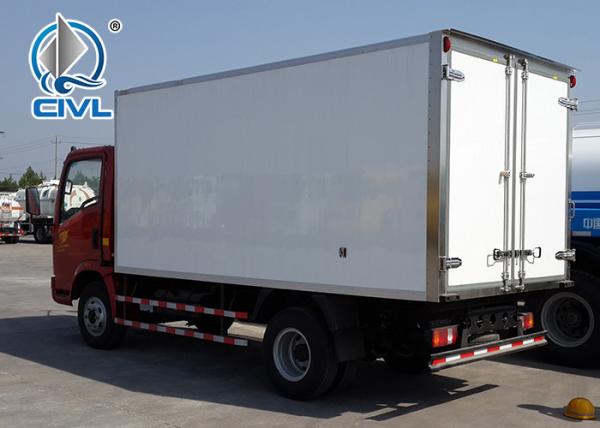

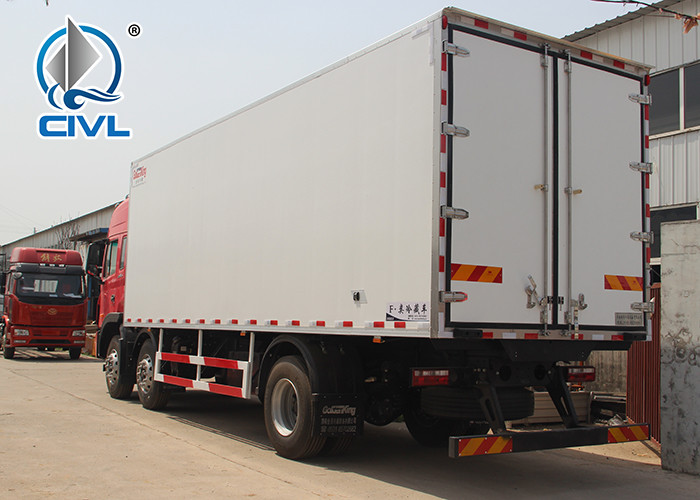

Refrigerated truck is one kind of closed van truck which is used to transport the frozen
or fresh goods, was fitted with the refrigerating unit device and polyurethane thermal
insulation van and it is refrigeration special use transport truck, usually used for
transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits
( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc.
Specification:
| 7 Tons Refrigerated Trucks And Vans LHD 4X2 Closed Van Truck With Frozen Box |
| Chassis Model | ZZ1127G4215C1 |
| Drive Type | 4×2 |
| Engine | YC4E140, 140HP |
| Cabin | 2080 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | DC6J48TC(6 forwards & 1 reverses) |
| Front Axle | 3.2 Tons |
| Driving Axle | 8.2 Tons |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 8.25-20, 9.00R20 |
| Wheel base | 4200(mm) |
| Van board material | polymer composites |
| Dimension of cargo body | 5200*2300*2000mm, Bottom:3mm Side:1.5mm |
| Refrigerator | XL-300, -18C0 |
| Overall dimension | 7128×2462×3375mm |
| The curb weight | 6300(Kg) |
| Gross weight | 12490 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.
Competitive Advantage:
1) The "sandwich" structure (low thermal conductivity), good thermal
insulation effect. Using unsaturated polyester resin as binder, plus a cushion, with
rigid polyurethane foam insulation, heat conduction low coefficient, high strength. High
strength plate bonding, high sealing glue, forming a whole. The structure of the
refrigerator car is dominant in the domestic market, our company is using the technology
of refrigerated trucks.
2) Our company's production of circular easy brand refrigerator car introduced Italy,
Germany, the United States overall polyester foam technology, and high strength fiber
plastic and other material manufacturing technology and equipment
3) so that our company refrigeration, heat preservation technology level basic reached
world advanced water level.
4) Refrigeration, heat preservation car body with light, high strength, good heat
insulation performance, high temperature stability, no pollution, oxidation, easy
maintenance, but also has low noise, low energy consumption, low failure rate, food
preservation effect is good and so on a series of advantages
5) A lot of technical indicators and the world's advanced level is close to the fully
closed polyurethane plate bonded glass steel structure, this product is light weight,
low heat leakage.
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high
quality and more reliable
9) competitive price, cost-effective
10) Fast delivery time
11) Quick spare parts supply
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
