Sinotruk howo 4X2 Side Wall High Security HOWO 8 tons cargo truck
Production description:
Cabin: HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver`s seat and rigid adjustable co-driver`s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Applications:
It is suitable for in normal roads and tough roads, to transport kinds of bulk cargo.
Competitive Advantage:
Our professional
China's large special vehicle manufacturers, complete production qualification, such as ISO, CCC, complete export qualifications such as, special car import and export license.
Our service
Instructions for use in English or in French.Some countries have engine after-sales service station. Have special requirements, can arrange technicians abroad to after-sales maintenance services.
Our cooperative partner
International shipping companies, they are specialized in vehicles booking, warehousing, transshipment, container devanning , charging for incidental expenses, customs declaration, commodity inspection, insurance
Specification:
| CARGO TRUCK- ZZ1167M4617 |
| SPECIFICATION |
| Carriage dimension: (mm) | 5540x2300x550 |
| Dimension(Lx W xH) | 8377x2496x3048 |
| Approaching angle/Departure angle(°) | 19/23 |
| Overhang(front/rear) (mm) | 1500/1870 |
| Wheel base (mm) | 4600+1350 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 7860 |
| Engine | Model | WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| | Fuel type | Diesel |
| | Power, max(kw/rpm) | 213/2200 |
| | Emission | EURO II |
| Fuel tanker capacity (L) | 300 |
| Transmission | Model | HW13710CL,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| | Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | Model | ZF8098 hydraulic steering with power assistance |
| Front axle | HF7 |
| Rear axle | MCY13Q |
| Tyre | 12.00R20 |
| Electrical system | Battery | 2X12V/165Ah |
| | Alternator | 28V-1500kw |
| | Starter | 7.5Kw/24V |

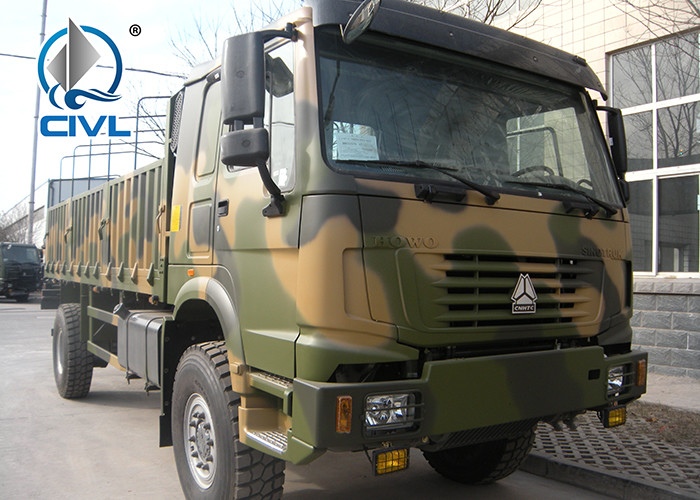

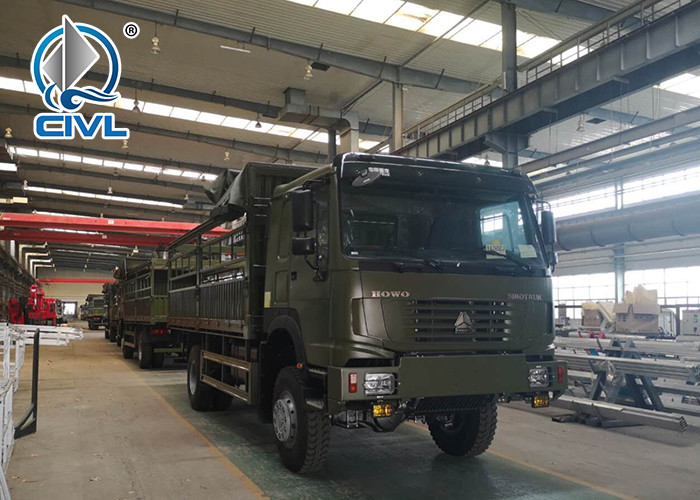

Details photo:
