Product Brief Introduction:

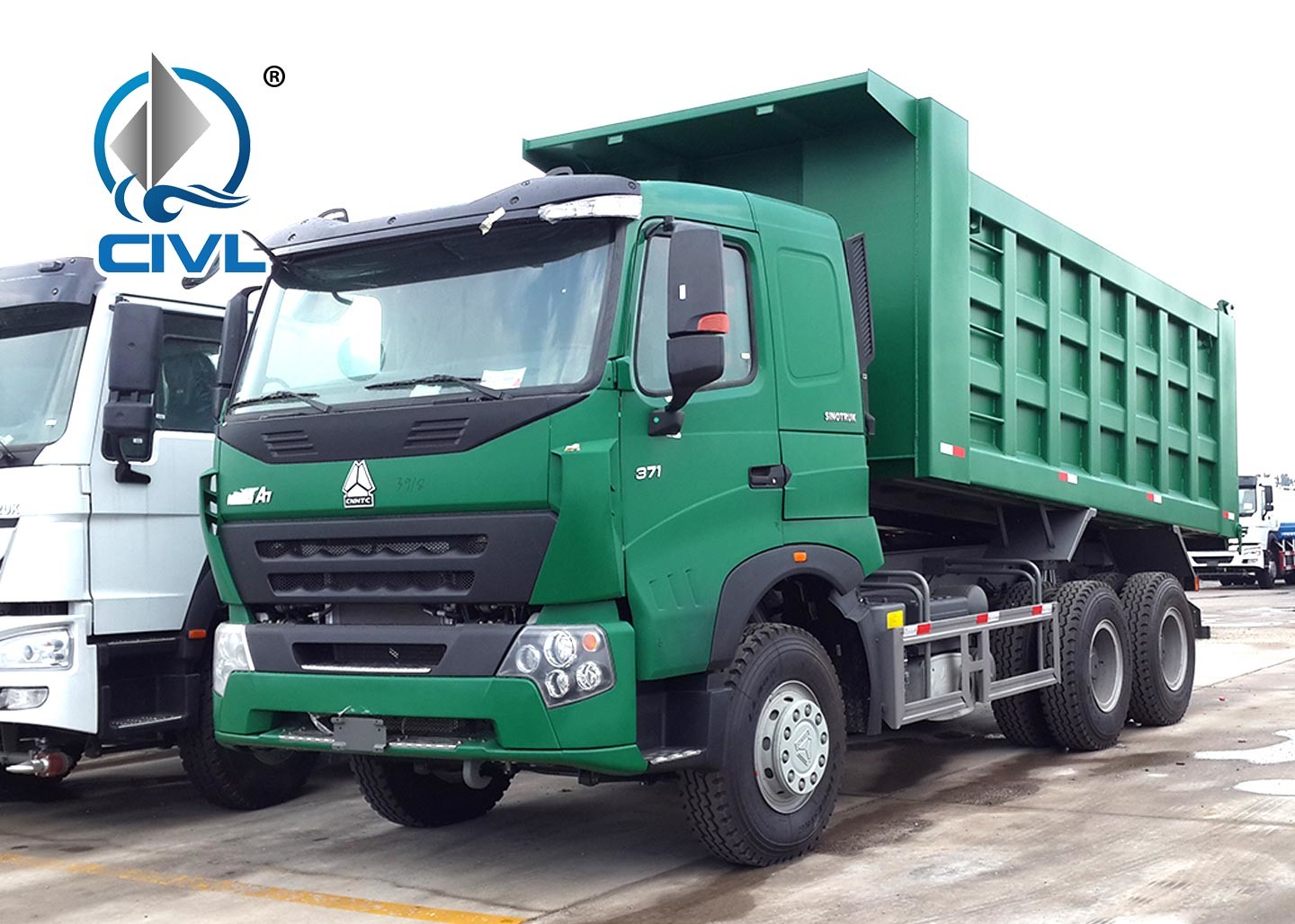

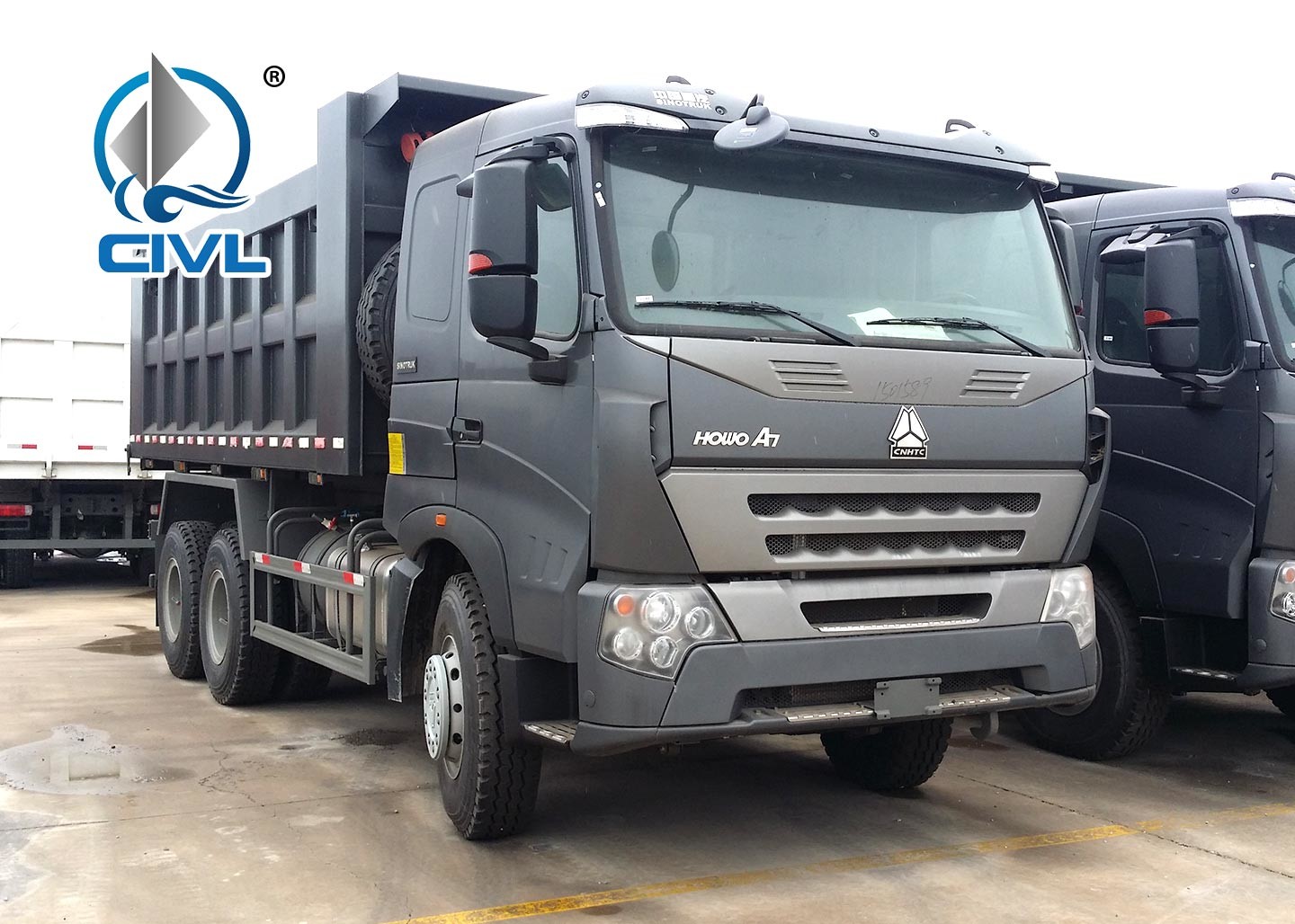

A7 series trucks own the elegant appearance, strong operation system and excellent safety.
Howo dump truck include light, middle, heavy three serials.
Loading weight, light: 3t-8t, middle: 8t-15t, heavy: 15t-45t.
Used for loading sand, stone, mud...construction material,in building project, quarry site, constrction plant, etc.
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
Specification:
| Chassis Performance | Curb weight :kg | 12500 |
| Total capacity : kg | 25000 |
| Rated load : kg | 35000 |
| wheel track front/rear : mm | 1175/1065 |
| Approach/departure angle: ° | 20/25 |
| Overall dimension LxWxH: mm | 8835*2496*3490 |
| Wheelbase: mm | 4125+1350 |
| Max driving speed: km/h | 90 |
| Cabin | Width | 2496 |
| Passengers | 3 |
| Steering | ZF8098, RHD |
| WITH A/C | YES |
| Transmission | Model | H19710T, 10 forward & 2 reverse |
| Engine | Type | 6 cylinders,vertical in line,watercooling ,Turbocahrger, Euro 2 standard |
| Displacement: L | 9726 |
| Fuel | Diesel |
| Rated power/roation : kW/rpm | 273/2200, 371hp |
| Tire | type | 1200R20 |
| No.s | 10+1 |
| Oil Tank | Type | 300L iron |
| Braking system | Drive brake | exhaust,air assistance |
| Auxiliary brake | Engine exhaust brake |
| Emergency and parking brake | hydraulic, drum |
| Dump Cargo body | Dimension: mm | 5800*2300*1500 |
| Thickness | Floor:8mm Side:6mm |
Advantage:
1. MAN technology
2. large loading capacity
3. large power
