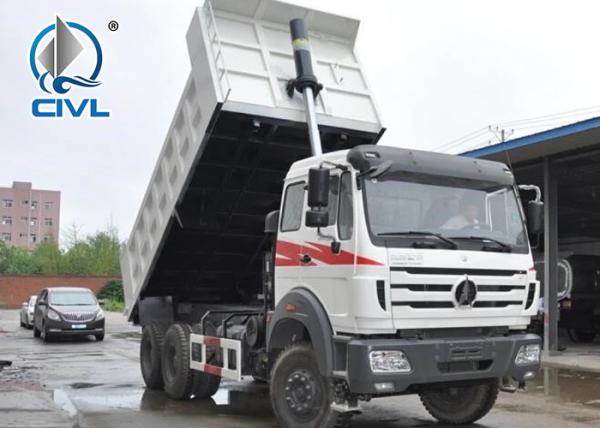

| Model | 6x4 dump truck |
| Cabin | Full steel skeleton structure, overall interior and instrumental platform, adjustable steering wheel , radio player; Can be tipped forwardly, A/C |
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. |
| | MAX Horse power: | 340HP/250KW (WP10.340E32) |
| | Displacement(L): | 9.726liter |
| | Max torque: | 1250NM@2200rpm |
| | Bore/stoke: | 126mm/130mm |
| | Fuel consumption | 193g/kw.h |
| Gear box | | Max torque:1600NM |
| | Model: | 12JS160T, mechanism, manual |
| | Speed: | 12speed,2reverse |
| Axle(front/rear) |
| Front axle | 7.5 ton double-shoe pneumatic brake, non-driving steering axle |
| Tandem | Double-shoe pneumatic brake, casting, double reduction driving axle |
| Clutch | Single dry frictional disc, Hydraulic boosting |
| Brake | Service brake: double circulation air brake system |
| | Parking brake: Potential springs pressing on middle and rear wheels |
| | Engine brake: Engine exhaust brake(EVB) |
| Steering | ZJ120D, driver sit at the left hand side |
| Electric Equipment |
| | Operating voltage: | 24Vnegative grounded |
| | Starter: | 24V,5.4KW |
| | Alternator | 28V,758W |
| | Battery voltage | 12V/135Ah, cigar lighter |
| Frame | Strengthen frame design as tough road, 300x90x8+6+8mm |
| Tyre | 10+1 spare tyre with rim |
| | 12.00R20 radial tyre |
| Suspension system: strengthen heavy duty Leaf spring type |
| | Front/Rear | 10/13 |
| Dump body: type of body : |
| Inside size of Body(mm): 5600x2300x1500, 8x6mm, made of high intensity steel |
| Lifting type: HYVA front lifting type hydraulic system. |
| Overall dimension(mm): 8530x2500x3310(Length x width x height) |
| Wheelbase | 3800+1450mm |
| Track: | |
| | Front/Rear | 1995/1800 |
| | Approach/Departure angle | 26/32 |
| | Front /Rear overhang | 1410/1870 |
| | Max speed | 90km/h |
| Kerb weight: | 12200kg | Fuel tank | 300L |
Features:
1. Best Chinese 6x4/8x4 Dump Truck Beiben NG80/V3 Tipper Truck with low price
2. Mercedes Benz Technology
3. Left handed drive and right handed drive available
4. High quality parts supply
5. Most professional service
6. New design
7. European vehicles security level
8. Stemping vehicle frame
9. Benz unique axle technique
10.High reliability fuel econ
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
FAQ:
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:How to transport the truck
A:We mainly transport it by ro-ro ship or bulk ship
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok
Q:How to maintain the trucks?
A:Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.
Q:Can you supply the spare parts of this truck
A:Yes, We can supply the spare parts for all the trucks we selling, We have spare parts department professional for this,Once you need spare parts we can supply immediately.
Q:Do you have oversea service?
A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.
Q:How long is the delivery time for the truck?
A:Mainly 30~40 days for shipment after received your deposit.
