Howo 371hp Left/Right Hand 10 Wheeler Dump Tipper Truck
| TRUCK SPECS | CHASSIS MODEL | ZZ3257N3647A , 6 x 4 ,with air conditioner ,LHD |
| Engine | WD615.69 336HP Europe II |
| Engine capacity | 9726 |
| Engine power (kw) | 247 |
| Transmission | HW15710 |
| Front axle | HF9 |
| Driving axle | HC16 |
| G.R.V.W (Kg) | 25000 |
| Tare Weight (Kg) | 12250 |
| Loading Capacity (Kg) | 25000 |
| Max. Speed (Km/h) | 75 |
| Brakes | Air braking |
| Tires | 12R20,11 units made in china |
| Cab | HW76,two seats with one bed |
| Outline Dimension (mm): | 8145 (L) x 2496 (W) x 3450 (H) |
| Wheelbase (mm) | 3625+1350 |
| Front axle load (kg) | 9000 |
| Rear axle load (kg) | 16000 |
BOX SPECS | Dimension of cargo box (mm) | 5400 (L) x 2300 (W) x 1400(H) |
| Lift system | “F” style ,middle lift |
| Thickness of bottom plate(mm) | 8 |
| Thickness of side plate(mm) | 6 |
The quality warranty period of our products is within 12 months after delivery of products.
1.For normal damaged parts claims, service team will reply the distributor within 3 working days.
2. For serious vehicle problems, it will take us 5 working days to reply the distributor, since our service team has to report it to our factory for final judge.

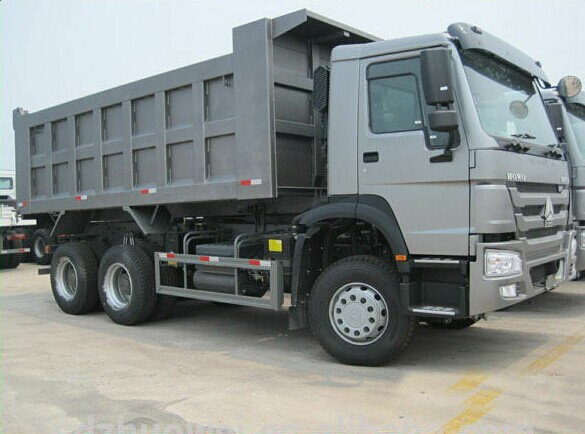

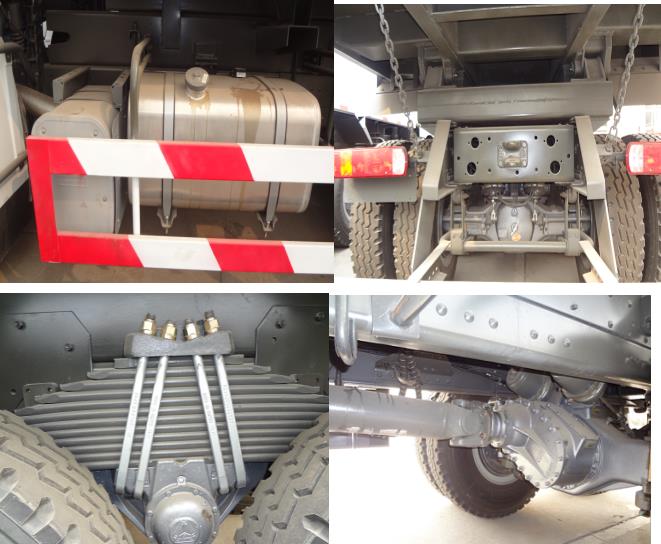

Detailed Pictures for China 10 Wheel New Dumper Truck Price 371HP 20 Cubic Meters Sinotruk HOWO Tipper Dump Truck For Sale

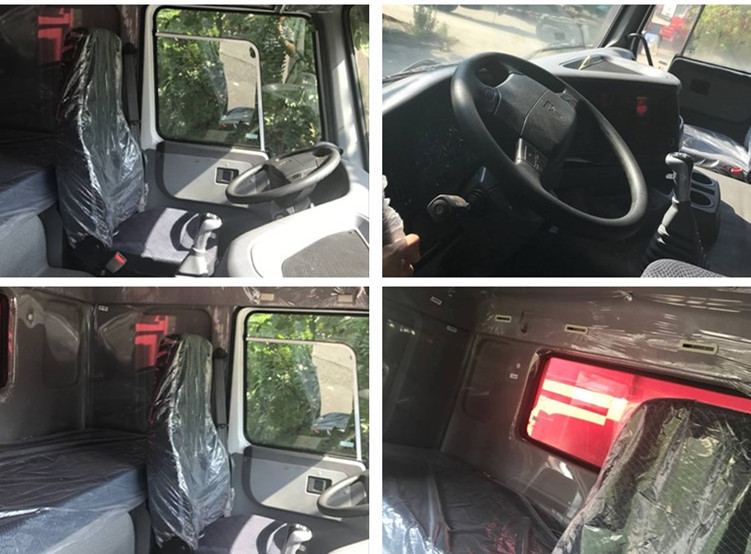

Cabin Details for China 10 Wheel New Dumper Truck Price 371HP 20 Cubic Meters Sinotruk HOWO Tipper Dump Truck For Sale
