Detailed Product Description
| Product Name: | Tractor Truck | Model: | ZZ4257N3241V |
| Drive Type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.69, 336HP | Fifth Wheel: | #50, #90 |
| Traction Capacity: | 60-70tons | Cabin: | HW79, Two Berths |

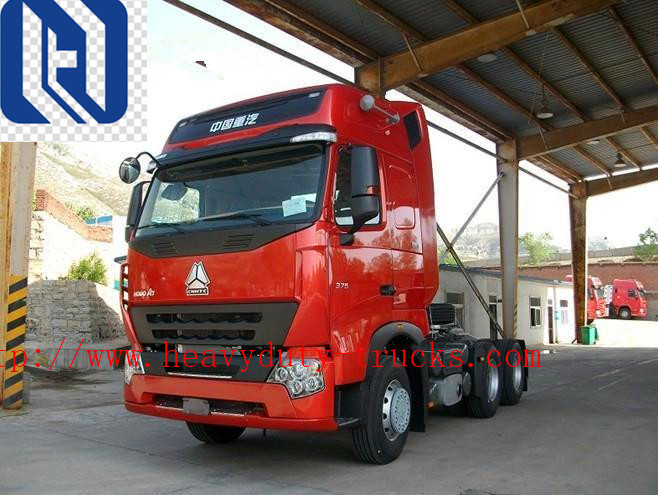

SINOTRUK Tractor Truck LHD 10 Wheels HW79 high roof cab two berths ZZ4257N3241V
Description:
SINOTRUK Tractor Truck LHD 10 Wheels HW79 high roof cab two berths ZZ4257N3241V
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons);
When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
Highway transport is divided into two version, to match the different condition of transportation needs.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle,
which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
| SPECIFICATIONS FOR TRACTOR TRUCK |
| Vehicle Specifications | Model | ZZ4257M3247W |
| Traction 4X2,6X4,8X4 | 6X4 |
| Power | 290HP |
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 19000 |
| Maximum authorized total mass (kg) | 25000 |
| Dimension Parameter | External Dimensions(mm) | Length (mm) | 6800 |
| Width(mm) | 2496 |
| Height(mm) | 3563 ,3718,3668 |
| wheelbase(mm) | 3225*1350 |
| Performance Parameter | Maximum Speed(km/h) | 90 |
| Maximum Gradeability(%) | 72 |
| Turning diameter(m) | 15 |
| Recommended Configuration | Engine | Engine Type | WD615.93C |
| Rated power(kW)/Rev(r/min) | 213/1900 |
| Horse power/(hp) | 290 |
| Torque(N*m)/Rev(r/min) | 1290/1200-1500 |
| Transmission | HW19712 |
| gearbox | 12forward gears,2reverse gear |
| Clutch(mm) | 430 |
| Axle | Front Axle | HF7 |
| Rear Axle | MCY13Q |
| Axle load-bearing | Front axle | 7t |
| Front axle | 13t |
| Fuel Tank(L) | 400 |
| Track(mm) | 300 |
| Front overhang/rear overhang(mm) | 4/12 |
| Type | 295/80R22.5 |
| Cabin | Sleeper | double sleeper |
| OTHER | ABS | optional |
| COLOR | optional |
| Horse power | 290HP (266/336/371/420 is optional) |
| Tyre | tubeless(nylon and radial is optional) |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1)excellent appearance of cabin, safety, reliable
2)it has higher safety and running efficiency.
3)low fuel consumption
4)strong enough engine
5)with all kinds of truck model, which can fulfill your requirement
6)the key parts adopt the world's top technology products
7)based on strong technical support and top level technology make the trucks with high quality and more reliable
8)competitive price, cost-effective
9)quick and efficient spare parts supply bring you more convenient
10)fast delivery time, we can arrange production according to your needs exactly and Quickly

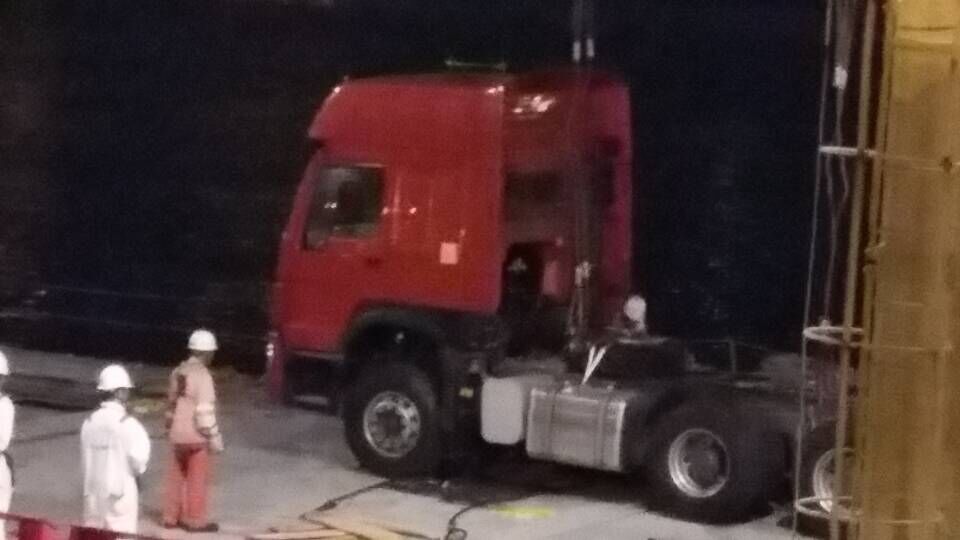

DELIVERY PTOS
Product Tags:
|
|
6x4 HOWO7 Sinotruk 102 km / h Prime Mover Truck Tractor Truck For Long Time DistanceTransport with 2 sleepers in cabin Images
|
