3 Axle 60tons Loading Capacity Hydraulic 40 Cubic Meter Tipper Trailer
Description:
Product Description : Side Dumper Truck Trailer
1. Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.
2. Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.
3. Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.
4. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
5. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
Specification:
| Overall dimension | 11,500*2,500*1,370mm |
| Main beam | Beam height:500mm Upper plate : 10mm Double Middle plate : 6mm Down plate: 12mm |
| Platform thickness | 4mm |
| Side wall thickness | 3mm |
| Material | T700 |
| Gross vehicle weight | Approx. 8.5ton |
| Jack | Hyva |
| King pin | Standard 2` exchangeable |
| Land gear | CHTC Standard 28T |
| Axle | FUWA brand, 3*15T |
| Suspension | Normal Suspension |
| Thicken leaf spring | 10/10/10 |
| Tire | Double Coin, 1200R20, 13 pcs |
| Rim | 8.5, 13 pcs |
| Brake Val | Standard |
| Brake Chamber | 6 pcs |
| Spare wheel carrier | 2 pcs |
| Tool box | 1 pcs |
| Electrical System | Chinese standard 24V lighting system |
| Side Marker Lamp | LED Lamp |
| Marking and Colour | By customer`s requiremen |

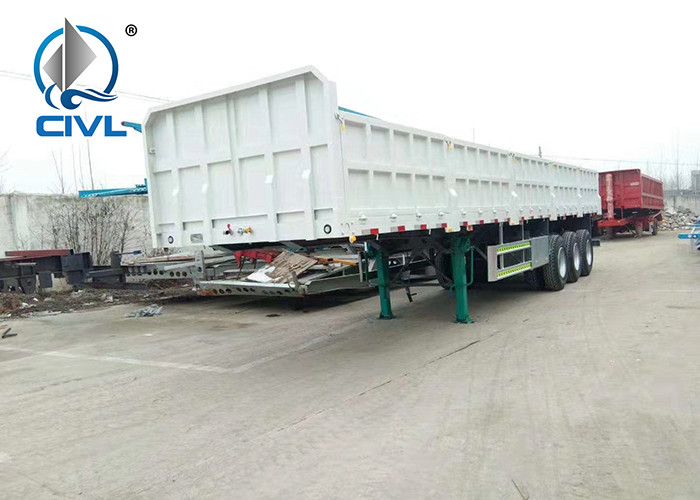

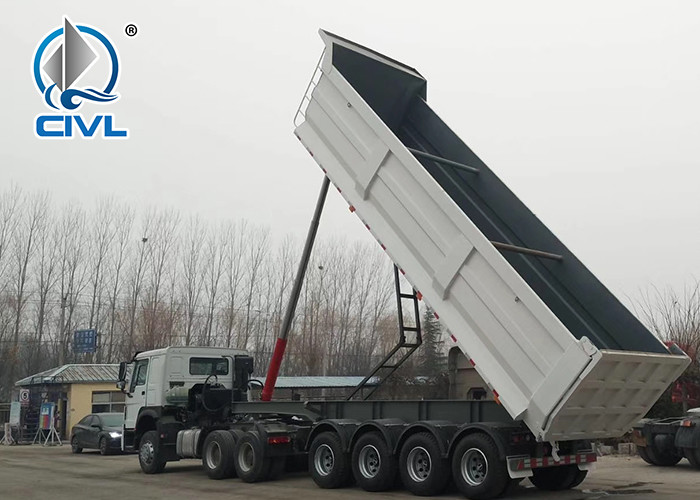

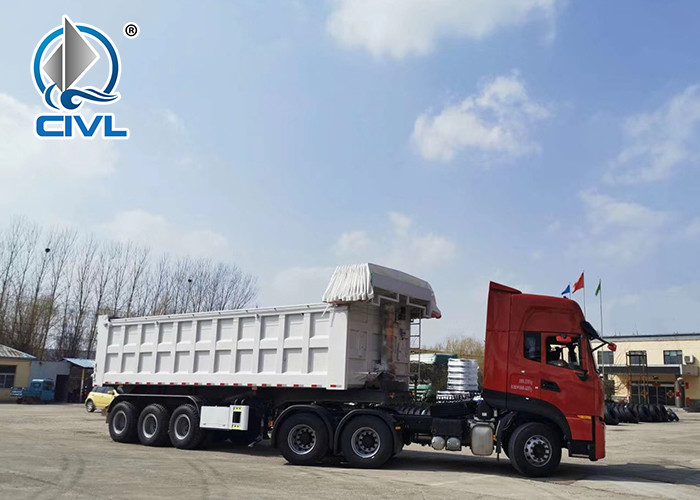

Detailed photo:
