Sinotruk Cimc 3 Axle Dump Trailer Tipper / Semi Trailer Truck For 40 50 60T Load Capacity

Name: Sinotruk Cimc 3 Axle Dump Trailer Tipper Semi Trailer Truck For 40 50 60T Load Capacity
Brand: CIVL
Price: 1 USD

Quality Sinotruk Cimc 3 Axle Dump Trailer Tipper / Semi Trailer Truck For 40 50 60T Load Capacity wholesale

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 20000units/year

Delivery Time : Within 35 days

Packaging Details : nude

Color : option

axle : fuwa

tire : triangle

material : Q235

thickness : 3mm

lifting : front

Contact Now

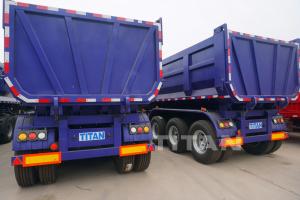

Sinotruk cimc 3 axles dump trailer tipper semi truck trailer for 40 50 60T load capacity

Overall Dimensions	12800x2500x3300 (mm)
Effective Volume	50M3
Rated Load	60000 kg
Floor	Steel Sheet 5mm(customized) thickness or diamond plate
Main Beam Material	Q345B manganese plates, automatic submerged arc welded Main frame is height 400/500mm, Upper plate is 16mm, lower plate is18mm,middle is10mm
Axle	13 Tons x Fuwa(or other brand)
No. Of the Axles	3 axles

Tyre Specifications	11.00R20
No. Of the Tyres	12
Suspension	Heavy duty leaf spring suspension
Pieces of leaf-spring	10
Brake System	dual-pipes braking system
Brake Air Chamber	Four double and two single chamber
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Electrical System	1.Voltage: 12v 2. Receptacle: 7 ways (7 wire harness)
Accessory	One tooling box with a set of standard trailer tool

Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.
Rolling-Over Welding: Panda Mechanical Holds the Leading Welding Quality,Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
Once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
