Articulating Lifting Telescopic Boom Crane 8 Ton Environmental Friendly

Name: Articulating Lifting Telescopic Boom Crane 8 Ton Environmental Friendly
Brand: CIVL
Price: 1 USD

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets per month

Delivery Time : Within 35 days

Packaging Details : In nude

Feature : Truck Crane

Application : Construction Industry

Condition : New

Overall width : 2500mm

Max. Lifting Height : 39.4m

Contact Now

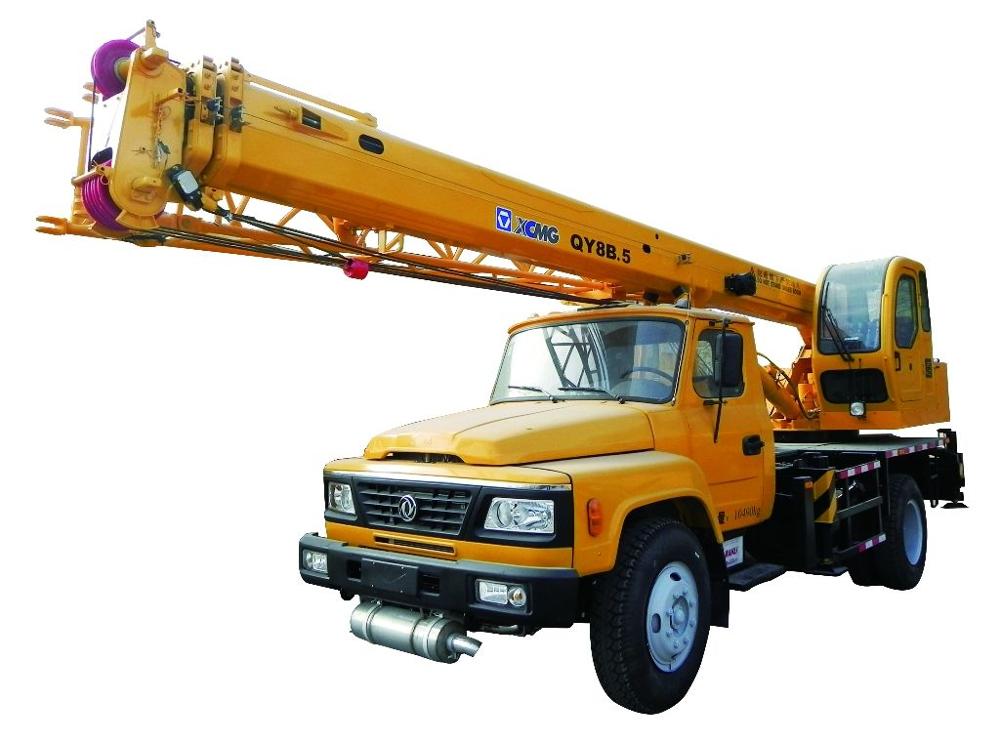

2017 QY8B.5 lifting crane supplier XCMG mobile crane truck 8ton

Product Detail_XCMG AFRICA

More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.

Product Detail_XCMG AFRICA

Dimension	Unit	QY8B.5
Overall length	mm	9450
Overall width	mm	2400
Overall height	mm	3180
Weight
Total weight in travel	kg	10490
Front axle load	kg	2800
Rear axle load	kg	7690
Power
Engine model		YC4E140-30
Engine rated power	kW/(r/min)	105/2500
Engine rated torque	N.m/(r/min)	500/1600
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	16000
Min. ground clearance	mm	260
Approach angle	°	29
Departure angle	°	11
Max. grade ability	%	28
Fuel consumption for 100km	L	25.5
Main performance
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.254
Max. lifting torque	KN.m	245
Base boom	m	8.2
Fully extended boom	m	19
Fully extended boom+jib	m	25.3
Longitudinal outrigger span	m	3.825
Lateral outrigger span	m	4.18
Working speed
Boom luffing time	s	28
Boom full extension time	s	31
Max. swing speed	r/min	2.8
Main winch single-pump/dual-pump converging (single rope)	m/min	53/110
