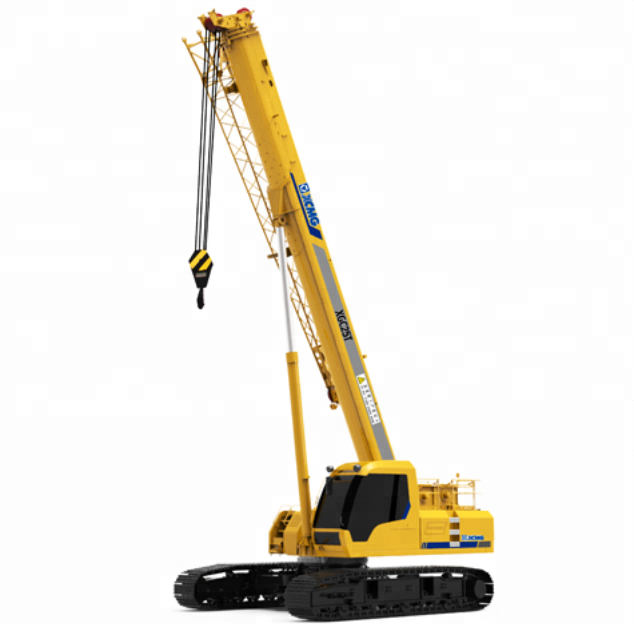

XGC25T 20 Ton Crawler Telescopic Boom Crane For Construction Building

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 set/sets per month

Delivery Time : Within 35 days

Packaging Details : In nude

Max. Lifting Height : 39.8m

Span : 1.5m-30m

Applicable Industries : Construction works

Width of track shoe : 700mm

Min. rated radius : 3m

Contact Now

Best price XGC25T 20 ton crawler crane with Telescopic boom for sale

Product Description

The max rated load of XGC25T telescopic crawler crane is 25t, 4-section telescopic boom, fully extended boom length is 33m (10.6~33m), jib length is 8.15m,it meets all working radius in boom length range. Extendable crawler track meets the requirements of lifting work with high stability, also meets transport requirements for crane outline dimension.

Main Parameter

Items Unit Parameter value
Parameters - XGC25T
Size *
Crane full length (mm) 12805
Crane full width (mm) 4200/2950
Crane full height (mm) 3035
Central distance between active and passive roller (mm) 4330
Width of track shoe (mm) 700
Weight *
Total mass in travel state (kg) 34960
Travel *
Travel speed with empty load (km/h) 2.6
Travel speed with full load (km/h) 1.5
Min. clearance from the ground (mm) 357
Max. gradeability (%) 45
Ground pressure (MPa) 0.06
Power *
Ear noise (A) 80
Engine model - QSB6.7
Rated power of engine (kw) 142
Rated revoution speed of engine (r/min) 1800
Emission standard of engine - EU Stage IIIA
Capacity *
Hydraulic tank capacity (L) 400
Fuel oil tank capacity (L) 450
Main performance parameters *
Max. rated total lifting weight (t) 25
Min. rated radius (m) 3
Max. lifting load moment --basic boom (kN·m) 970
Max. lifting load moment --max. boom (kN·m) 576
Hoisting height --basic boom (m) 9.9
Hoisting height--max. main boom (m) 32.3
hoisting height--max. main boom +jib (m) 39.8
Lifting boom length--basic boom (m) 10.6
Lifting boom length--max. main boom (m) 33
Lifting boom length--max. main boom+jib (m) 41.15
Jib installation angle (°) 0,15,30
Working speed *
Main boom hoisting time (s) 48
Main boom fully extending time (s) 56
Max. slewing speed (r/min) 2.5
Hoisting speed (empty load, the 4th layer) main hoist system (m/min) 140
Hoisting speed (empty load, the 4th layer) auxiliary hoist system (m/min) 140

Packaging & Shipping

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

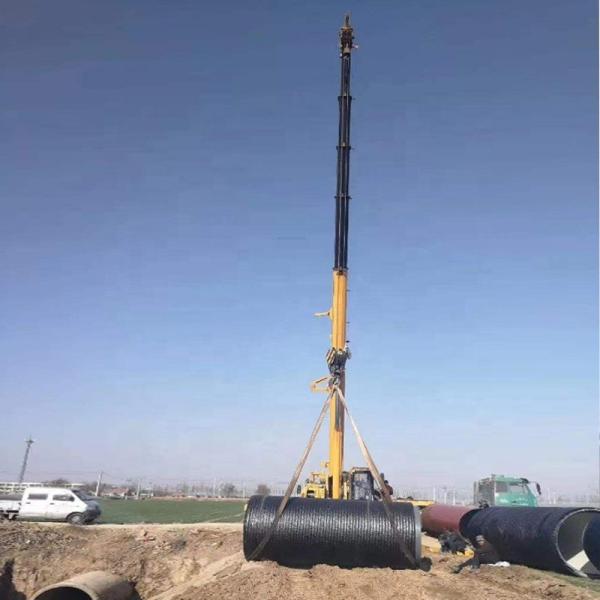

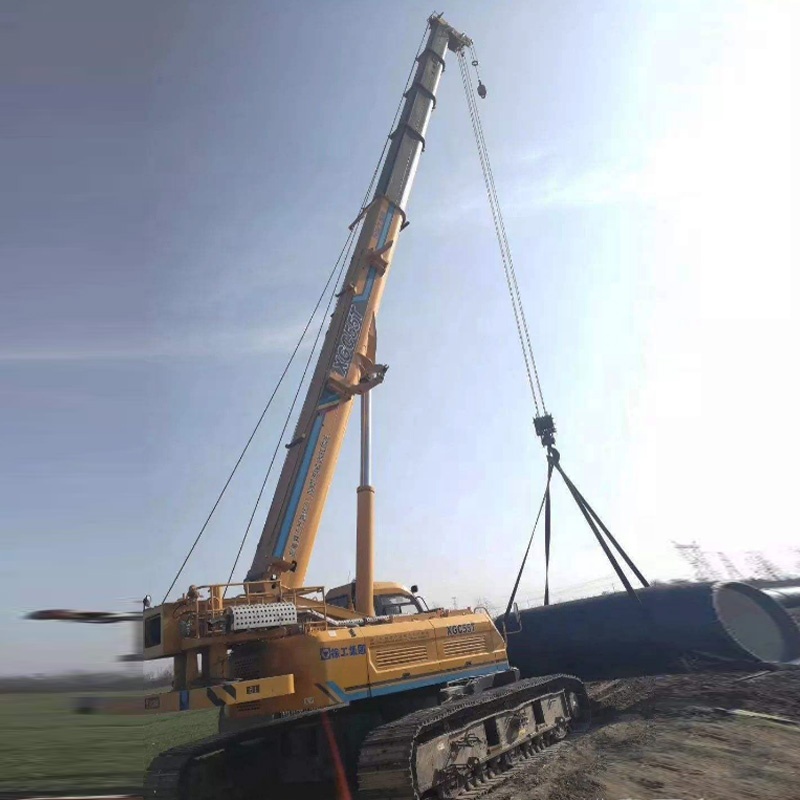

Below picture for you reference

XGC25T 20 Ton Crawler Telescopic Boom Crane For Construction Building

XGC25T 20 Ton Crawler Telescopic Boom Crane For Construction Building
