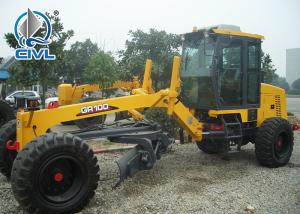

SHMC Motor Graders GR100 Maintenance Convenience 5 10 20 39 km / h
Ideal for defense construction Mine construction
Urban and rural road construction
Irrigation and farmland improvement
GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.
Performance and characteristic:
1. New appearance design.
2. The articulation frame is adopted and macthed with the steering of the front wheel, with small turning radius, maneuvering and flexible.
3. The electro-hydraulic contrals the power shift gearbox, with 6 ahead box and 3 back gears.
4. The international mataching hydraulic parts are adopted, with reliable operation.
5. The motions of the knife are fully hydraulically controlled.
6. The rear axle is the three-section driving axle which is provide with the NO-SPIN self-locking differential mechanism.
7. The manipulation table and seats are adjustable. The arrgement of the manipulation handle and instruments are reasonable, with convenient application, and the comfprt of driving is improved.
8. The cab is grand and nice, with wide eyeshot and good sealing.
9. The front bolldozing plate,rear scarification device, front scarification harrow and automatic leveling device can be added.
sepecification:
| Basic specification |
| Engine model | 4BT3.9 |
| Rated power/speed | 75/2400kw/rpm |
| Dimension(LxWxH) | 6880×2375×3150mm |
| Operating weight(Standard) | 7000kg |
| Performance specification |
| Travelling speed ,forward | 5,10,20,39km/h |
| Travelling speed ,reverse | 8,25km/h |
| Tractive force(f=0.75) | 41.6KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 350KPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3～1.8MPa |
| Operating specification |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 5.9m |
| Biade |
| Maximum lift above ground | 300mm |
| Maximum depth of cutting | 350mm |
| Maximum blade position angle | 45° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 120° |
| Moldboard width X height | 3048×500mm |

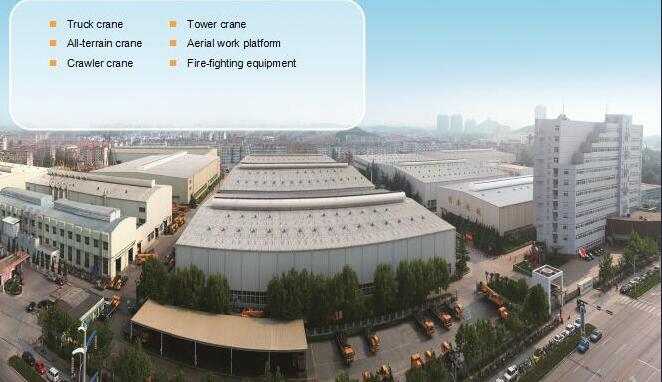

with over 51 years of experience ,we have become one of the key manufactures of trucks and road machines in China .
Exporting to more than 50 countries for 14 years .
For more information ,contact us now .
Email:helen@road-machine.com
What's app:0086-18764009590
Skype:helenjing59
Main Products Manufacturing:

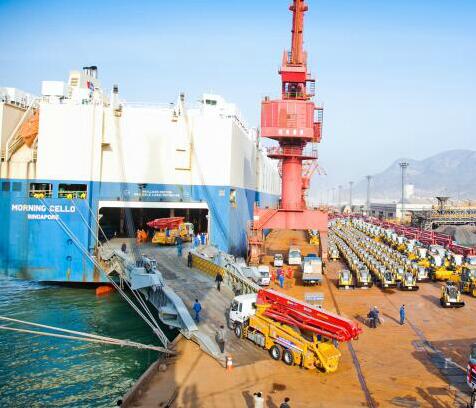

Shipping:

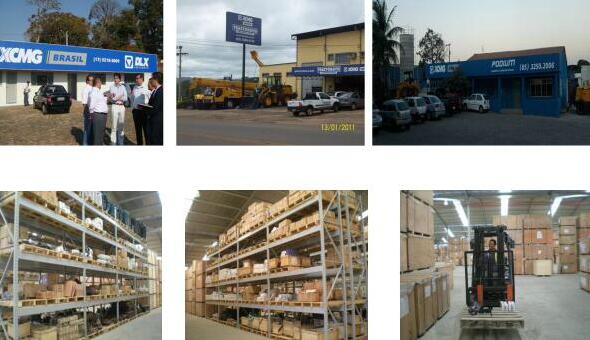

After-sale service:
