XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader

Name: XCMG 220HP Graders Equipment Rc Tractor Road Wheel Motor Grader
Brand: CIVL
Price: 1 USD

Quality XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader wholesale

Brand Name : CIVL

Model Number : CIVL

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500Unit/Units per Month

Delivery Time : 30-35 work days

Packaging Details : In nude

Forward Speed(km/h) : 38

Reverse Speed(km/h) : 23

Condition : New

Dimension(L*W*H) : 8970*2625*3420mm

Contact Now

XCMG 220HP GR2153 motor graders equipment china rc tractor road wheel motor grader price for sale

XCMG 220HP GR2153 motor graders equipment.

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%

2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine

3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.

4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.

Item			GR2153
Basic parameters	Engine model		QSB6.7
	Rated power/speed		164kW/2000rpm
	Overall dimension (standard)		8970x2625x3420
	Total weight (standard)		16500 kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
	Space of middle and rear wheels		1538 mm
Performance parameters	Forward velocity		5,8,11,19,23,38km/h
	Reverse speed		5,11,23km/h
	Tractive effort f=0.75		85 kN
	Maximum gradeability		≥25%
	Tire inflation pressure		260kPa
	Working system pressure		20MPa
	Transmission pressure		1.3—1.8Mpa
Working parameters	Maximum steering angle of front wheel		±48°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	400mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°—70°
		Angle of revolution	360°
		Length & chord height	4270x610mm
Oil filling amount	Coolant		50L
	Fuel tank		280L
	Engine		24L
	Transmission		38L
	Balancing box		46L
	Drive axle		28L
	Hydraulic oil		110L

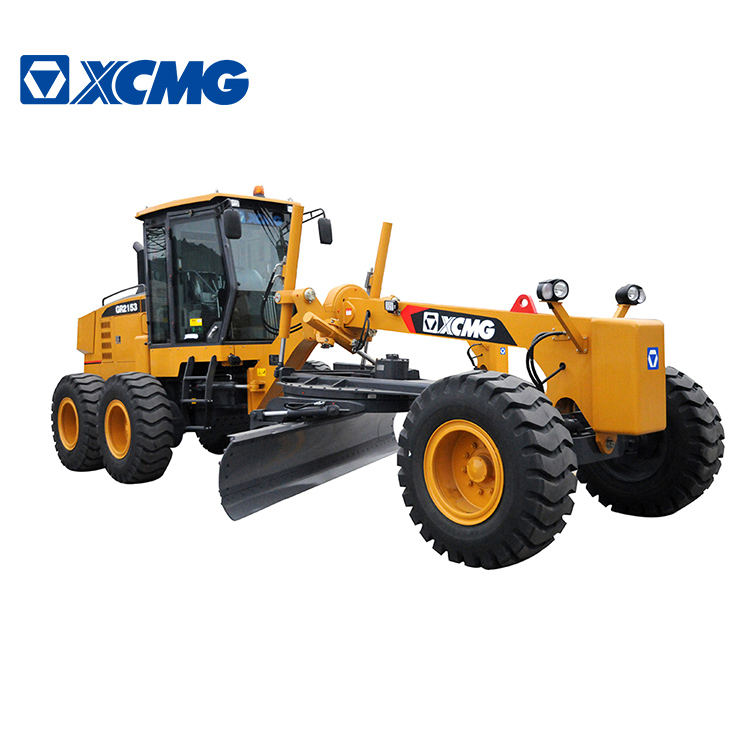

XCMG 220HP Graders Equipment / Rc Tractor Road Wheel Motor Grader

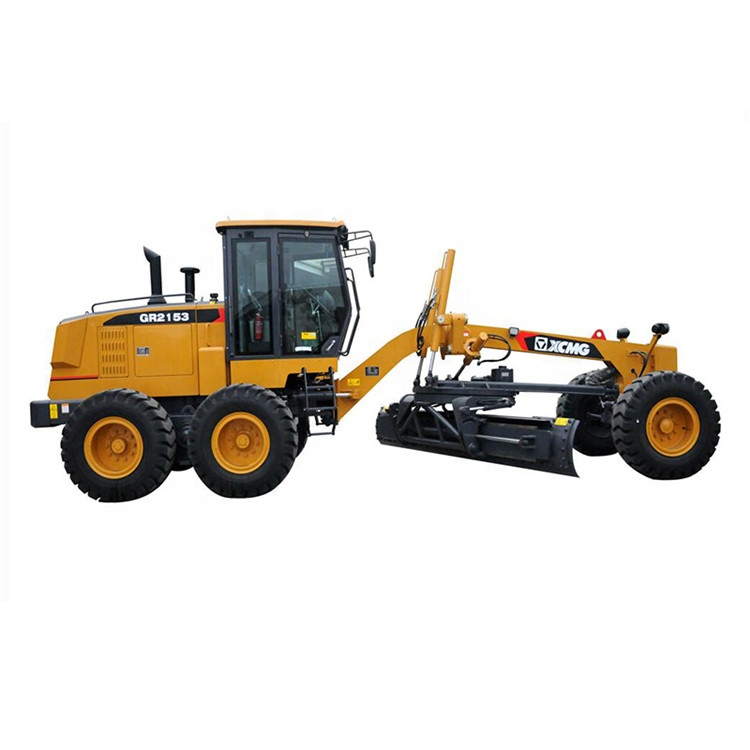

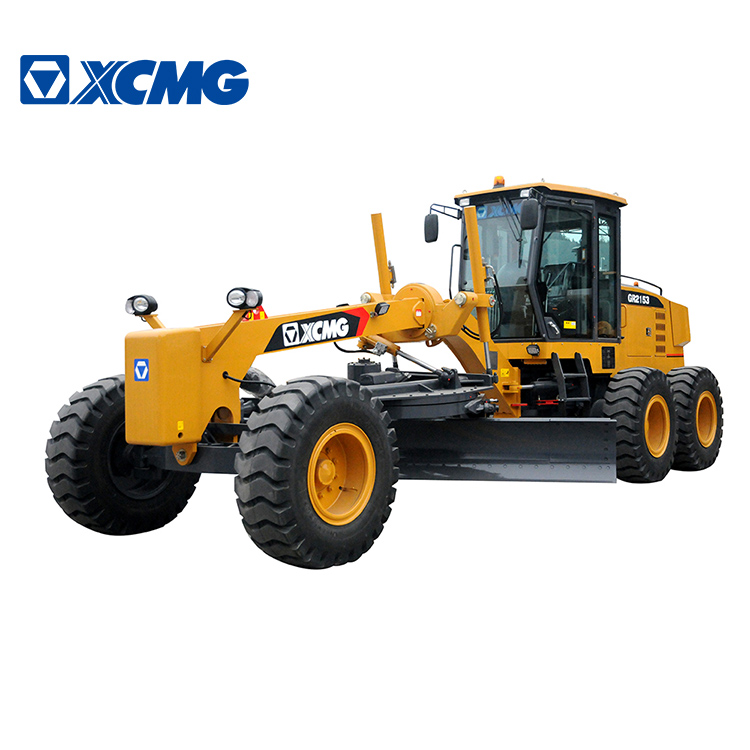

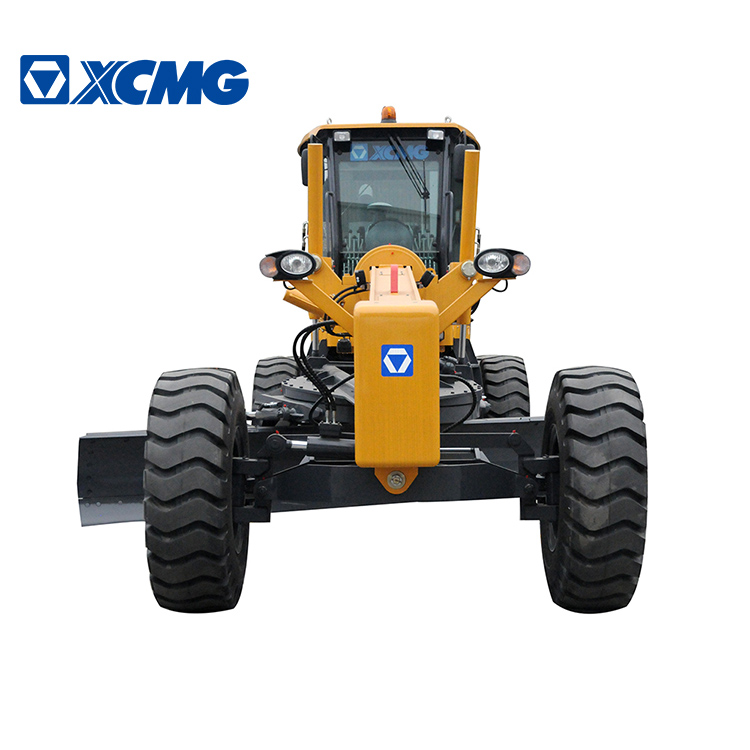

Below picture for you reference
