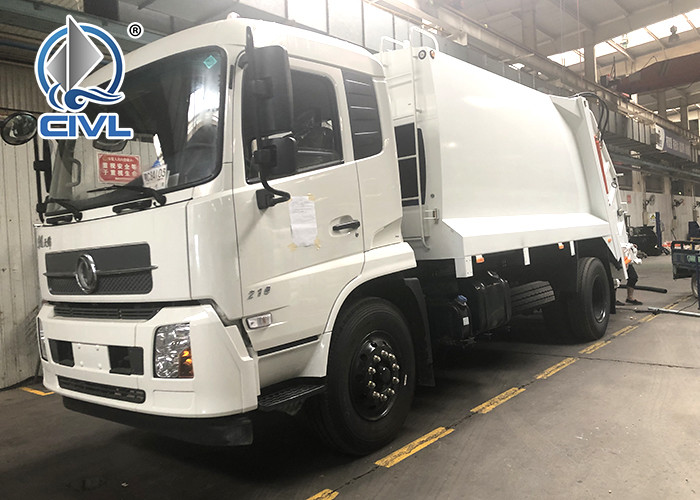

Recycling 4x2 Garbage Compactor Truck With 20 Mpa Hydraulic System
Advantage
1. Material of bucket is T520 High Strength , assure the quality
2.Very Stable Seal System prevent leakage
3. Hydraulic Valve inported from Italy ,keep excellent performance
Specifications
| Condition: | New | Drive Wheel: | 4x2 | Type: | Recycling |
| Transmission Type: | Manual | Emission Standard: | Euro 2 | Volume: | 3001 - 6000L |
| Fuel Type: | Diesel | Engine Capacity: | 8L | Size: | 6125x2140x2600 mm |
| Gross Vehicle Weight: | 32000 | Place of Origin: | Shandong
China (Mainland) | Brand Name: | SINOTRUK |
| Model Number: | ZZ1167M4611W | Certification: | CE | After-sales Service
Provided: | Overseas service
center available |
| Color: | White,Red,Blue,Black,Yellow,Option |
| Dimension(LxW xH)(unloaded)(mm) | 6980x2496x3150 |
| Cargo body capacity (LxWxH)(mm) | 12m³ |
| Hydraulic system working pressure(Mpa) | 20 |
| A cycle time filling job (s) | ≤25 |
| A waste of time shift (s) | ≤45 |
| Maximum crushing compression strength (kg)
| >35000 |
| Wheel base (mm) | 3800 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 7950 |
| Loading Weight(kg) | 7920 |
| Engine
( technology, made in China) | Model | WD615.87,water-cooled,four strokes,
6 cylinders in line with water cooling
,turbocharged an, intercooling, directly
injection |
| Fuel type | Diesel |
| Power,max(kw/rpm) | 213/2200 |
| Emission | EUROII |
| Fuel tanker capacity (L) | 300 |
| Transmission | Model | HW15710,10 forward&
2 reverse |
| Brake system
| Service brake | Dual circuit compressed
air brake |
| Parking brake | spring energy, compressed
air operating on rear wheels
|
| Steering system
| Model | ZF8098 |
| Front axle | Steering with double T-cross section beam |
| Rear axle | Pressed axle housing,central double
reduction with differential locks between
axles and wheels |
| Tyre | 12.00-20 |
| Electrical system | Battery | 2X12V/165Ah |
| Alternato | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HW70 |
Photos
