4 x 2 SINOTRUK HOWO Garbage Truck 10 Cube With Fashion Design
Description:
SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Detailed Parameter of 4x2 SINOTRUK HOWO Garbage Truck 10 cube , With Fashion Design
| Dimension(LxW xH)(unloaded)(mm) | 6980x2496x3150 |
| Cargo body capacity (LxWxH)(mm) | 12m³ |
| Hydraulic system working pressure(Mpa) | 20 |
| A cycle time filling job (s) | ≤25 |
| A waste of time shift (s) | ≤45 |
| Maximum crushing compression strength (kg) | >35000 |
| Wheel base (mm) | 3800 |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 7950 |
| Loading Weight(kg) | 7920 |
Engine
( technology, made in China) | Model | WD615.87 |
| | Fuel type | Diesel |
| | Power,max(kw/rpm) | 213/2200 |
| | Emission | EUROII |
| Fuel tanker capacity (L) | 300 |
| Transmission | Model | HW15710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| | Parking brake | spring energy |
| Steering system | Model | ZF8098 |
| Front axle | Steering with double T-cross section beam |
| Rear axle | Pressed axle housing |
| Tyre | 12.00-20 |
| Electrical system | Battery | 2X12V/165Ah |
| | Alternate | 28V-1500kw |
| | Starter | 7.5Kw/24V |
| Cab | HW70 |

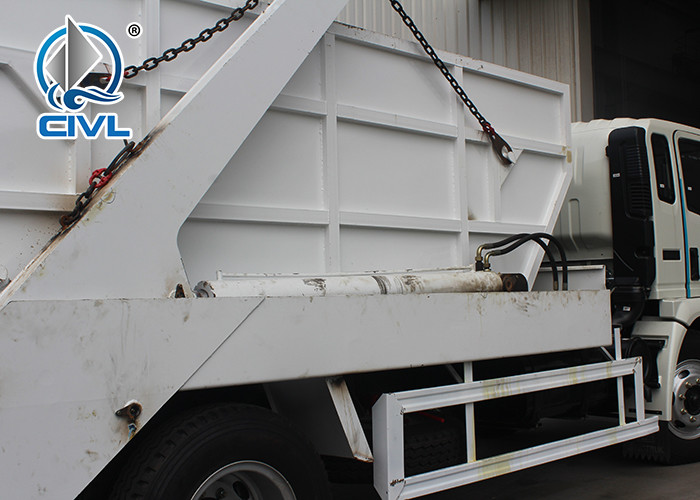

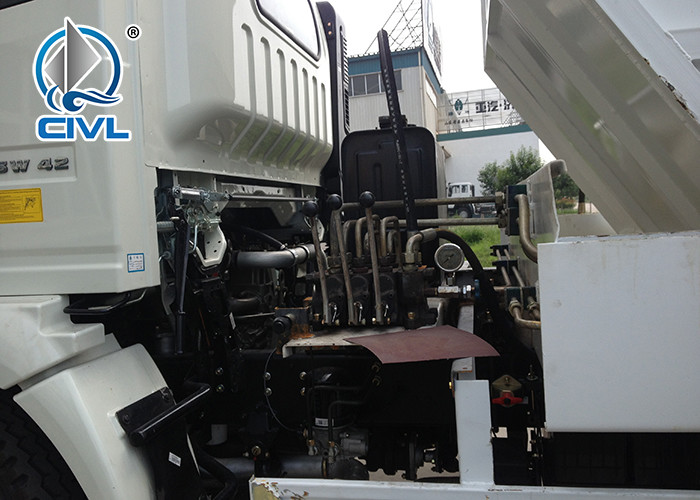

Photos
Other Truck and trailer can be provide according to your request, freely contact me for the informations and quotations.
