Sinotruk HOWO Diesel Engine 40m3 Capacity 6x4 mining anti dust water tanker truck
Description:
Mainly used for washing of small , medium and large cities in the road , trees , green belt , green lawns , factories and constructions of the building , high altitude construction rinse . Has the function of sprinkling , the pressure dust , high and low spraying , pesticides spraying and fence flushing . Also has the function of carrying water , water discharge , emergency fire
1.production name:water truck, water tank truck, water tanker truck,watering truck,water wagon,water cart, watering vehicle ,water transportation truck.
2.driving style:4x2 ,4x4, 6x2, 6x4, 6x6, 8x4 ,8x8
3.tank capacity: 1-40m3 ,customerized.
4.Provide different brand chassis: DONGFENG, SINOTRUK, SHACMAN, NORTH BENZ, FOTON, ROWOR, HINO, JAC, JMC
OR WITH ISUZU CHASSIS
Specification of the water truck:
| Item | unit | parameter | |
| Product Name | | Mining water truck | |
| Chassis model | | Sinotruk HOWO | |
| Overall dimensions | mm | 10000×3165×3900 | |
| Fact cubage | L | 35000-40000 | |
| Net Weight | kg | 16000 | |
| Tank dimensions | mm | | |
| Wheel base | mm | 3800+1500 | |
| Approach/departure angle | ° | 33/48 | |
| Exhaust/hp | ml /kw | 9726/273 | |
| Max speed | km/h | 80 | |
| Tire specification | 14.00-25 | Engine type | WD615.47 |
| Traction system | 6×4 | Transmission | HW19710 |
| Number of axles | 3 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 3,2 |
| | |
| Engine | Sinotruk Diesel Engine (Euro 2) |
| Production cycle | 40 days |
| Warranty | 12 month, from the date of supply,and can supply the spare parts if needed. |

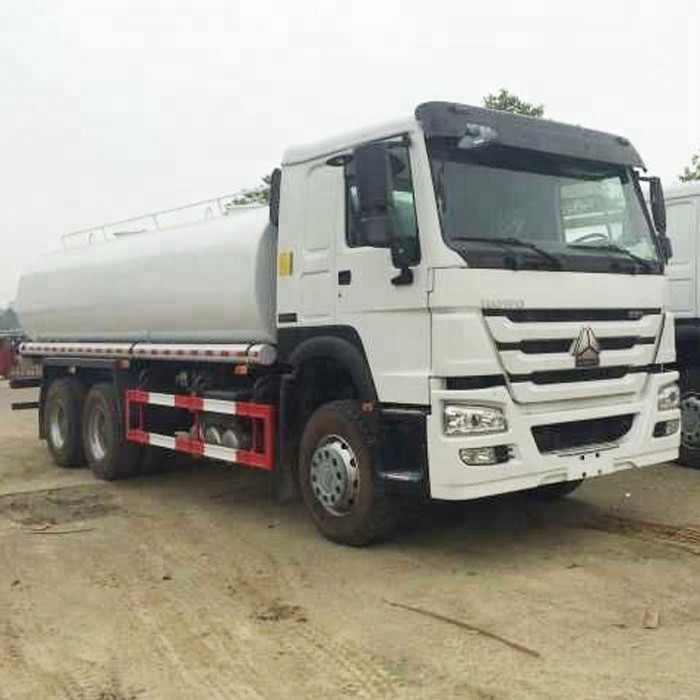

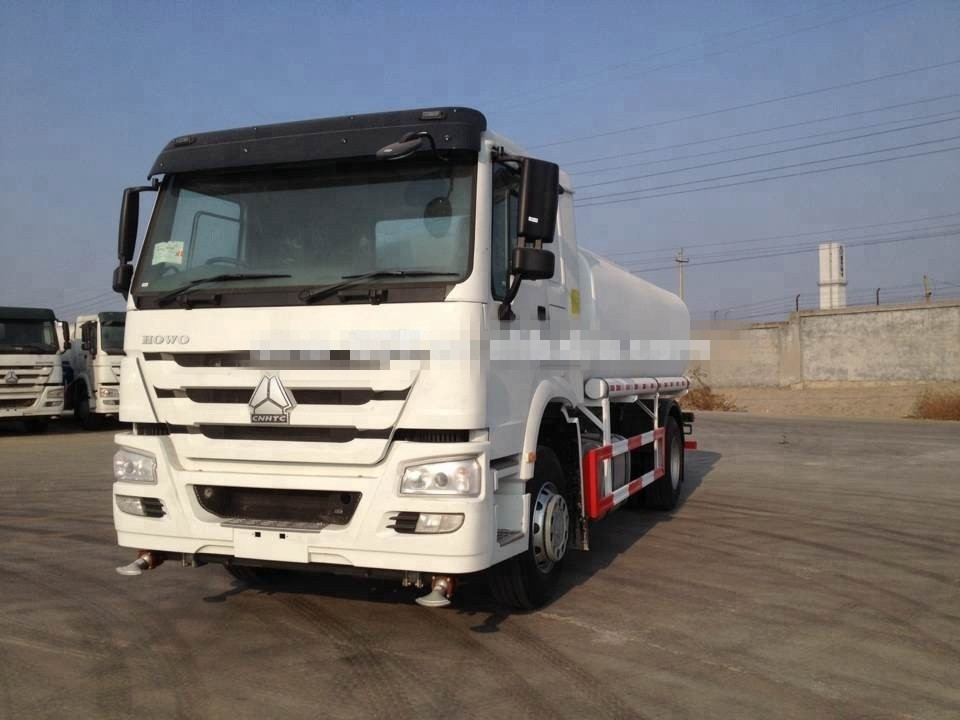

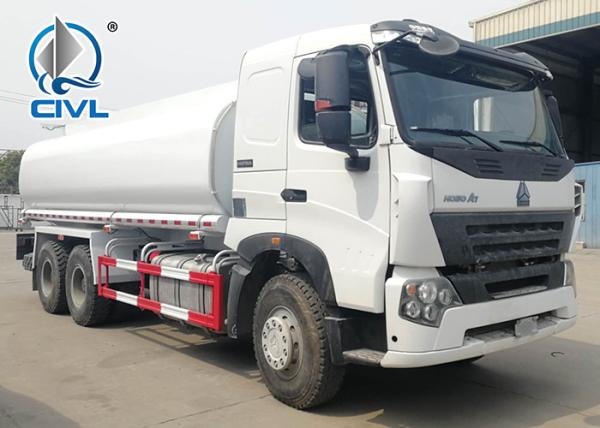

Detailed photo:
Related Production:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55470323, 54640582, 54640443, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
