6x4 Sinotruk Howo Any Color Sprinkling Water Tanker Truck 20m3 336hp Water Tank Truck
Description:
1. Chassis multi choice: Dongfeng, ISUZU, Howo
2. Engine multi choice: according to your working environment to recommend accordingly
3. Volume: 3~30 CBM, others also can custom
4. Factory visiting: We will arrange you a nice trip.
5. Quality guarantee: 16 years manufacturing experience, strict control in every production line
6. After-sale service: One year free maintainence
Specification:
| Truck Model | ZZ1257N4347 (LHD) |
| Truck Brand | SINOTRUK –HOWO |
| Driving Style | Left Hand Driving |
| Tank body volume | 16CBM |
| Approaching angle/Departure angle(°) | 19/26 |
| Overhang(front/rear) (mm) | 1500/1739 |
| Wheel base (mm) | 4350+1350(mm) |
| Max speed(km/h) | 75 |
| Maximum gradeability (%) | 40 |
| Minimum ground clearance(mm) | 314 |
| Minimum turning circle (m) | 20 |
| Curb weight(kg) | 12290 |
| Loading Weight(kg) | 25000 |
| Fuel tanker capacity(L) | 300 |
| Fuel consumption(L/km) | 28L/100 km |
| Clutch | Single-plate dry clutch Φ430mm |
| Engine Model ( technology, made in China) | Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 371HP,247/2200 |
| Emission | EURO II |
| Model | WD615.47 |
| Bore | 126mm |
| Stroke | 130mm |
| Compression ratio | 29.8hp/l |
| Specific fuel consumption | 195g/kwh |
| Transmission | Model | HW19710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | Model | ZF8098 Hydraulic Steering with power assistance. |
| Front axle | HF9 |
| Rear axle | HC16 |
| Color | Optional (White ,Red ,yellow ) |
| Tyre | 12R22.5 |
| COLOR | YELLOW |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HW76 single sleeper |

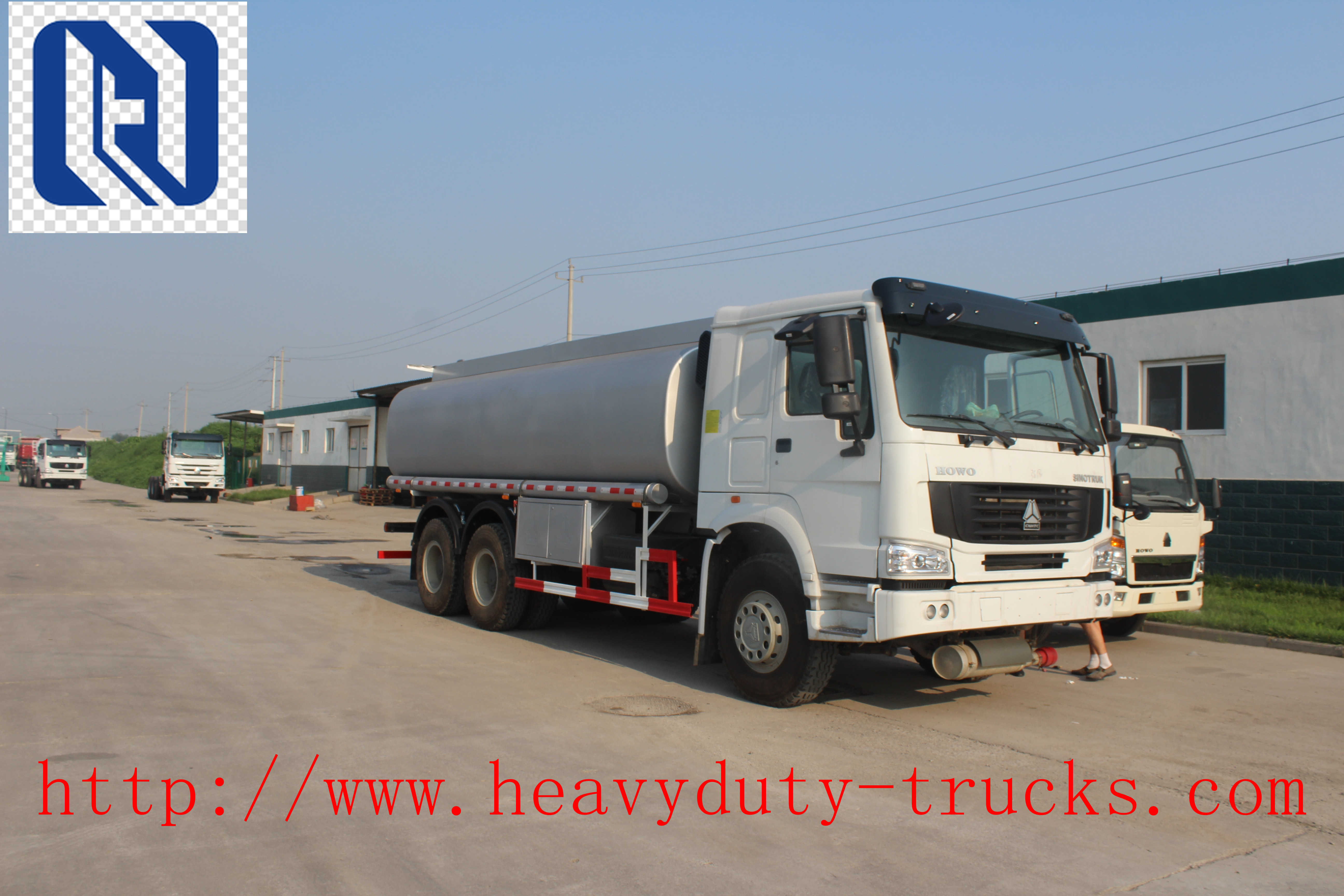

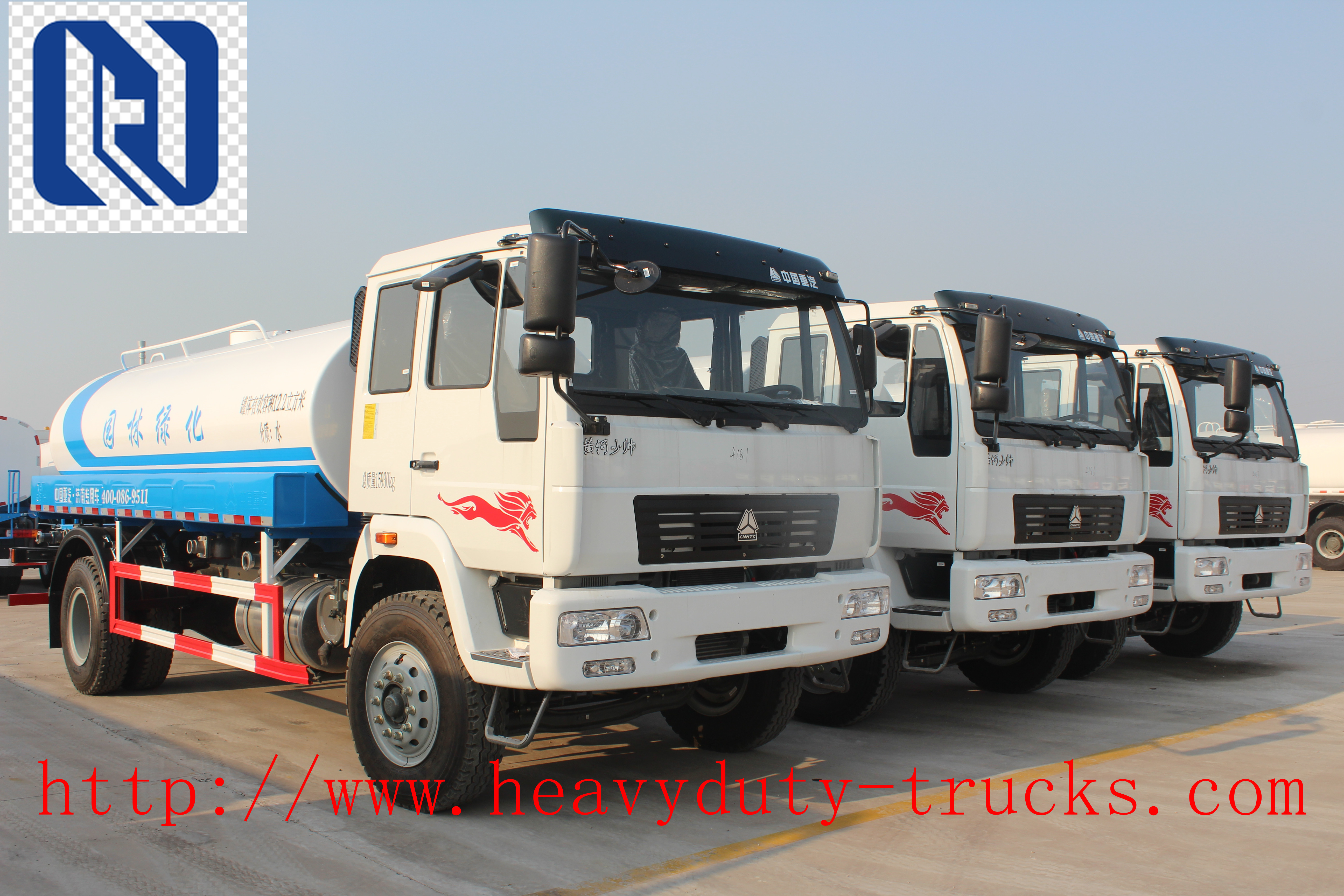

Detailed photo:
