SINOTRUK HOWO Green Water Carrying Water Tank Truck Drinking Water Truck 15-25CBM
Description:
SINOTRUK HOWO Green Water Carrying Water Tank Truck Drinking Water Truck 15-25CBM
SINOTRUK HOWO Water tank truck is widely used in city landscaping, road or ming site dusty restrain and so on.
Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m;
Also can be adjusted into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted behind the open sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped with water cannons.
Working principle is truck engine driven gearbox, gearbox mounted power take-off drive
sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of
liquid through the pipe to spray out.
Specification:
| SINOTRUK Water tank truck with Internal Anti - Corrosion 18-25CBM for water carrying |
| Chassis Model | ZZ1257N4641W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4325+1350(mm) |
| Capacity of tank body | 21-25CBM |
| Spraying width of travel | 14.8m |
| Spraying height | ≧30m |
| Water sucking depth | ≧4m |
| Overall dimension | 9920×2496×3550mm |
| The curb weight | 13180(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and
dust covering in large-medium-scale cities.
Competitive Advantage:
1) with all kinds of truck model, which can fulfill your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and
more reliable
5) High pressure, wide range of spraying good flushing effect
6) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
7) Pneumatic control and manual control system can realize two functions
8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
10) competitive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arrange production according to your needs exactly and quickly
13) professional import and export dealing procedure, make customs clearance more high efficiency

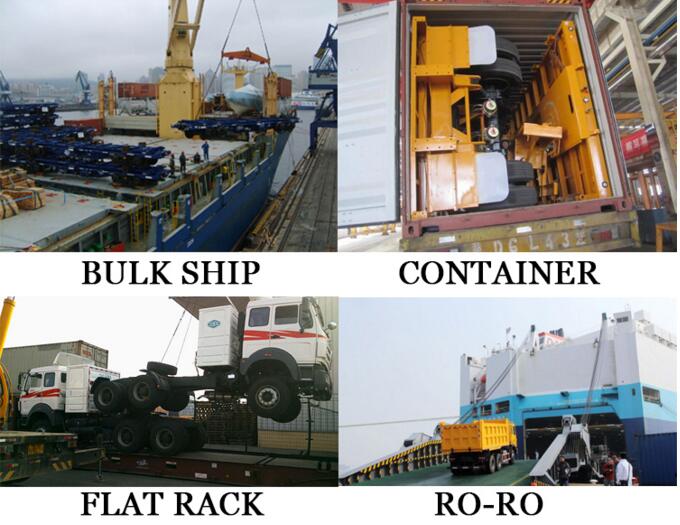

Shippment:
FAQ:
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok? A: We can make the tyres as your requirement to suit your country's need.
Q: I want to transport the truck by container, is it ok? A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality? A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:How to transport the truck A:We mainly transport it by ro-ro ship or bulk ship
Q:I want to be your agent in my country , is that ok? A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok
Q:How to maintain the trucks? A:Every day to lubricate the truck, because the working condition is dusty. And you have to change engine oil and air filter when the trucks arrive at about 8000-10000km or 400-500 hours.
Q:Can you supply the spare parts of this truck A:Yes, We can supply the spare parts for all the trucks we selling, We have spare parts department professional for this,Once you need spare parts we can supply immediately.
Q:Do you have oversea service? A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.
Q:How long is the delivery time for the truck? A:Mainly 30~40 days for shipment after received your deposit.
