The Snow-plough 's parameters as below

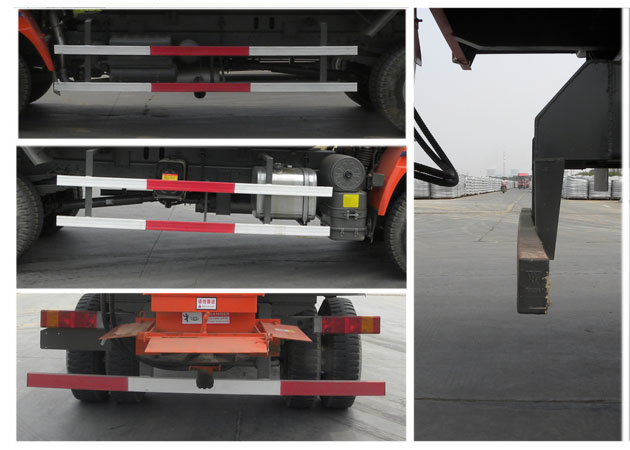

The main special device:The volume of Spreader for spraying device :Drying medium 7 cubic meters.The material of side and bottom side protective device is Q235A,Connection mode: profile for the bolt connection,The back of the welding,Rear the section size of the lower protective device for (width x height) : 50 mm * 100 mm, and height from the ground is: 500 mm.
| Vehicle name | Snow-plough |
| Vehicle type | Special vehicle |
| Vehicle model | SHMC5160TCX |
| Engine displacement | 9726 | Engine manufacturers | SINOTRUCK |
| Overall dimensions(L/W/H) | 9000×2490×3250 | Type of fuel | Diesel |
| Total weight(Kg) | 16000 | Box(L/W/H) | ×× |
| Curb weight(kg) | 11770 | Payload capacity(kg) | 3 |
| Front passenger(Person): | 2 | Permitted capacity(kg) | 4100 |
| Approach/departure angle | 12;22 | Front/rear Overhang | 1600/2700 |
| Wheelbase(mm) | 4700 | Axle load | 6000/10000 |
| Axel nos | 2 | Max.drive speed(km/h) | 75 |
| Tyre nos | 6 | Spring nos | 9/9+6 |
| Steering model | Steering wheel | Tire type | 11.00-20 18PR,11.00R20 18PR,12.00-20 20PR,12.00R20 18PR |
| Front wheel track | 19,952,047 | Rear wheel track | 18,201,850 |
| Chassis standard | GB17691-2005EUROⅢ,GB3847-2005 |
| Identification code | LZZAEBMF××××××××× LZZAEBNF××××××××× |
