Mining Hydraulic Wheel Excavator Machine / Long Boom Excavator Dipper Arm

Name: Mining Hydraulic Wheel Excavator Machine Long Boom Excavator Dipper Arm
Brand: CIVL
Price: 1 USD

Quality Mining Hydraulic Wheel Excavator Machine / Long Boom Excavator Dipper Arm wholesale

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000 Unit/Units per Year

Delivery Time : Within 35 days

Packaging Details : In nude

Price : Negotiation

Bucket capacity : 0.58cbm

Operating Weight : 14000kg

Moving Type : Wheel Excavator

Engine Brand : Cummins

Contact Now

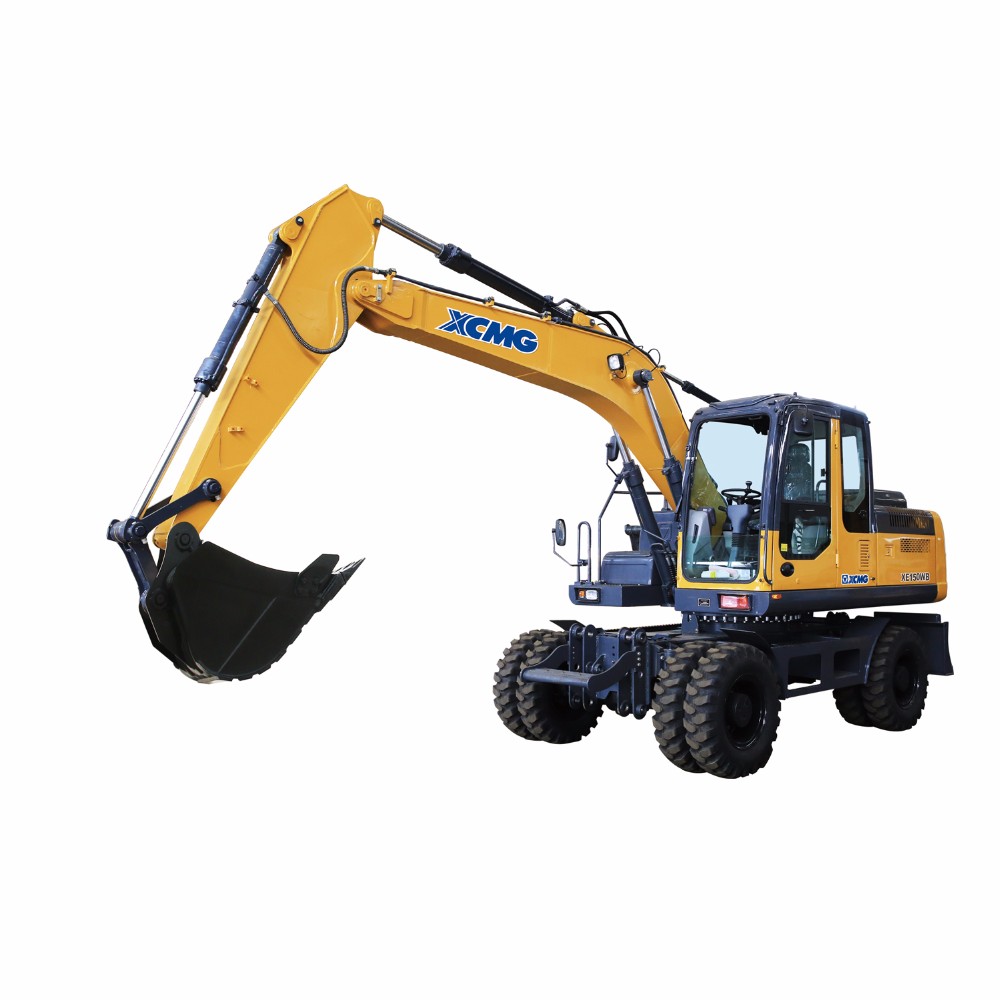

XCMG 15 ton XE150WB new hydraulic wheel excavator machine for sale

Main configuration

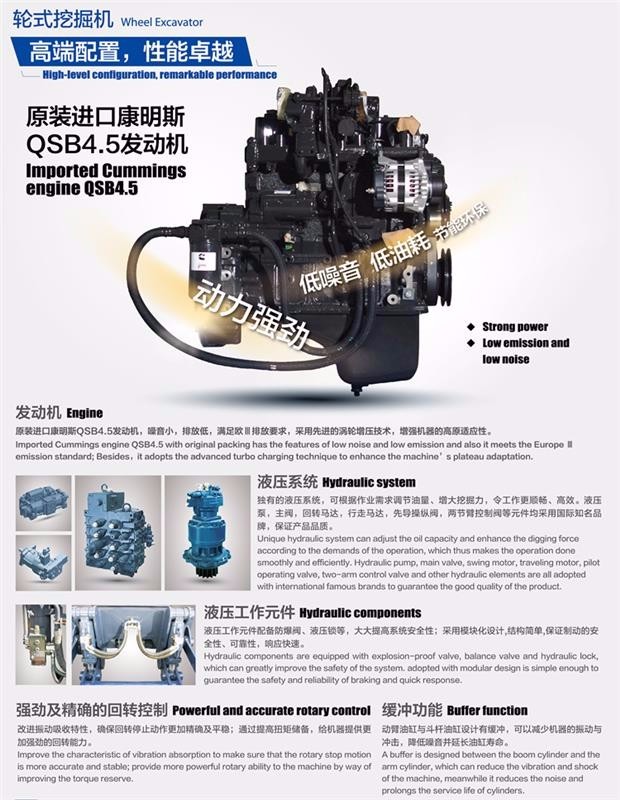

Cummins QSB4.5 engine 104/kw
Hydraulic system

XE150WB wheeled hydraulic excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.

1. Equipped with a new generation of high-efficiency direct injection engine.

2. Using highly professional design and analysis tools, combined with bench tests, to ensure that our machines are strong and durable.

Mining Hydraulic Wheel Excavator Machine / Long Boom Excavator Dipper Arm

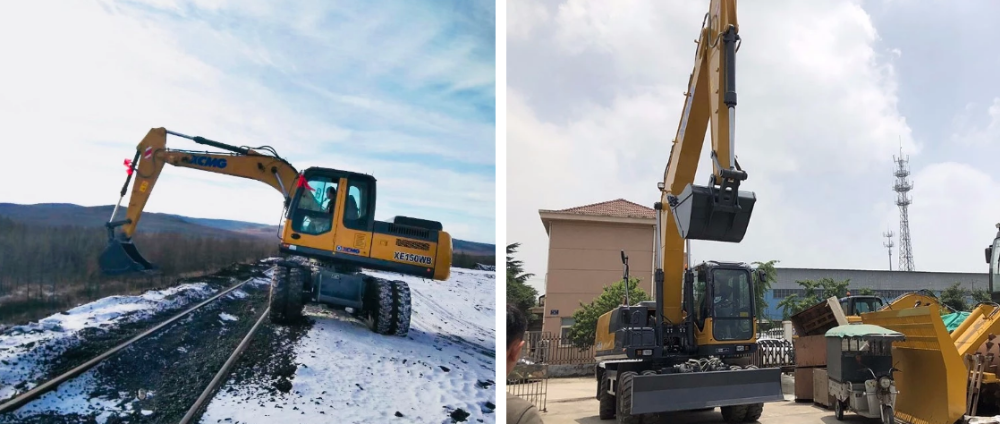

Producr Show

Specification

Engine model	/	QSB4.5
Output power of engine	Kw/r/min	104/2000
Max.torque/engine	N.m	586
Displacement	L	4.5
Fuel tank capacity	L	250
Rated flow of main pump	L/min	2x160
Pressure of main safety valve	Mpa	31.4/34.3
Hydraulic tank capacity	L	135
Slewing speed	r/min	13.7
Digging capacity of tcuket	KN	60
Digging capacity of tcuket rod	KN	65
Min.turning radius	mm	6500
Gradient capability	%	70
A Total length	mm	6482
B Total width	mm	2552
C Total heigth	mm	3158
Counterweight ground clearance	mm	1230
Min.ground clearance	mm	359
Min.tail swing radius	mm	2300
Wheelbase	mm	2800
Track gauge	mm	1920
Total width of chassis	mm	2495
Distance between front axle and turning center	mm	1700
Hood height	mm	2430
The maximum digging depth of dozer	mm	112

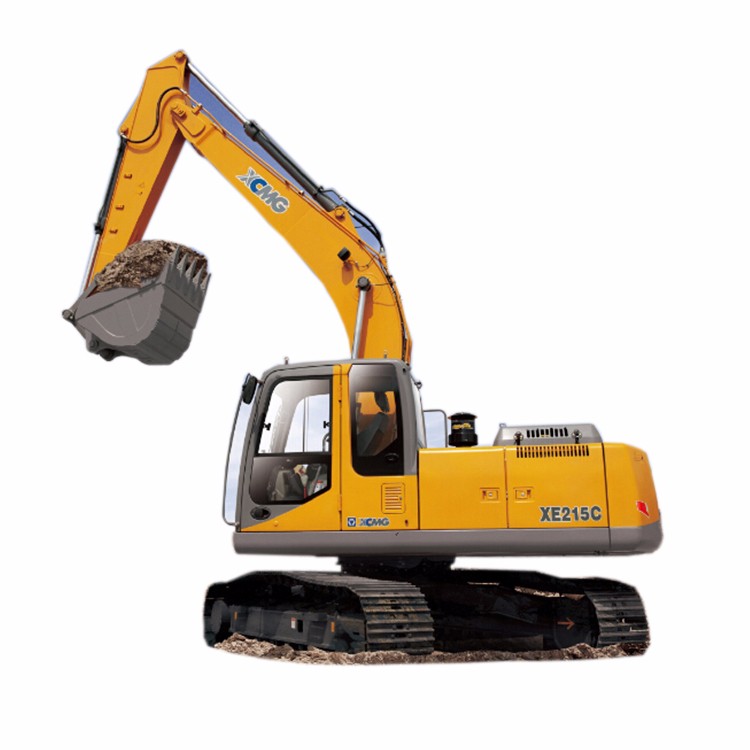

20 ton XE215C Crawler

Excavator.

Environmental•Energy-saving•Large power engine,XE215C is suitable for earth and stone construction projects,it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.

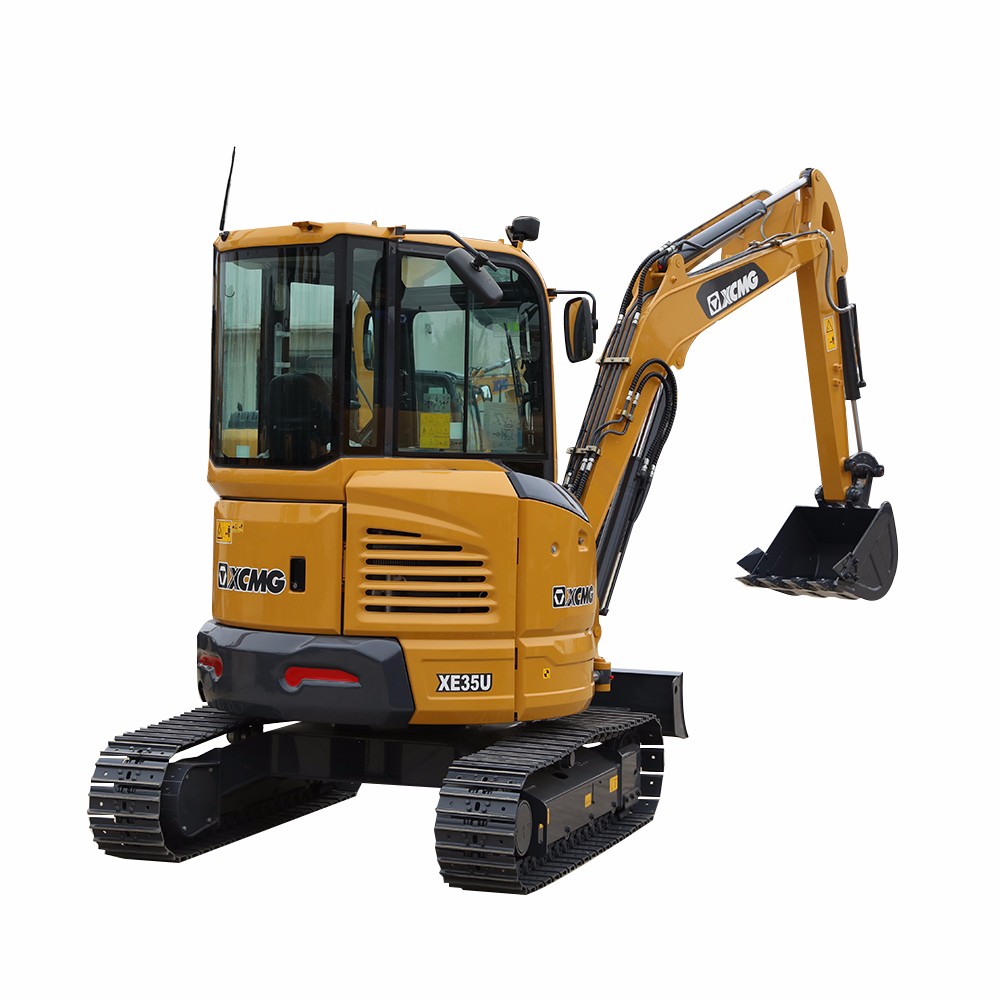

3.5 ton XE35U mini Crawler Excavator.

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

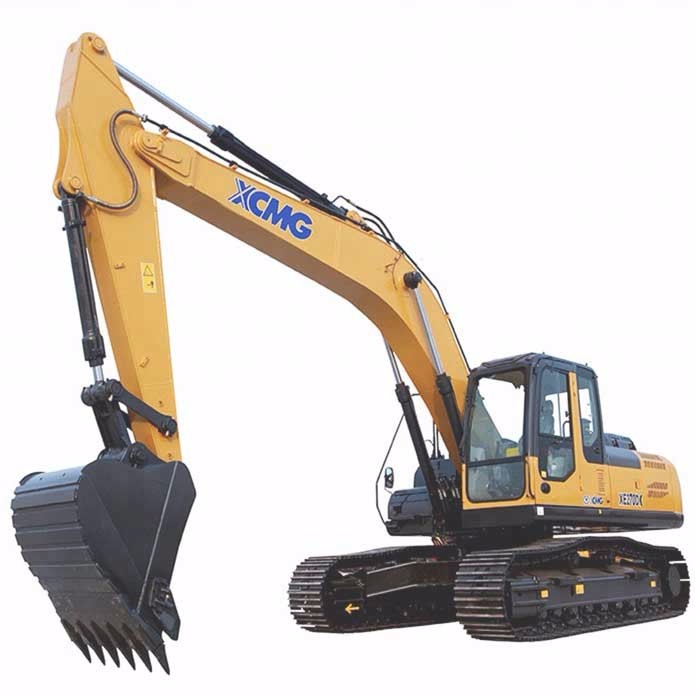

26 ton XE265C Crawler Excavator for sale.

The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

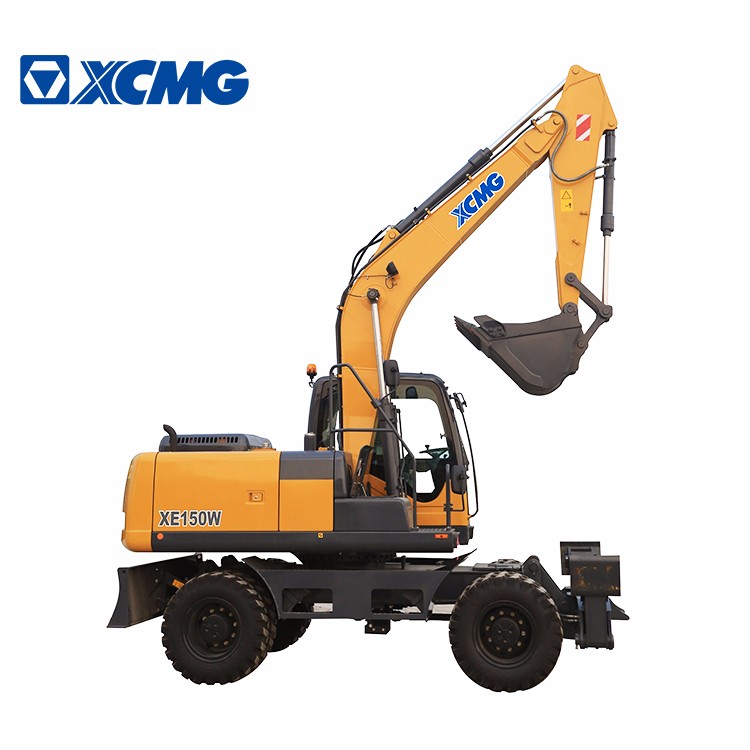

15 ton XE150WB hydraulic Wheel Excavator .

As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards.

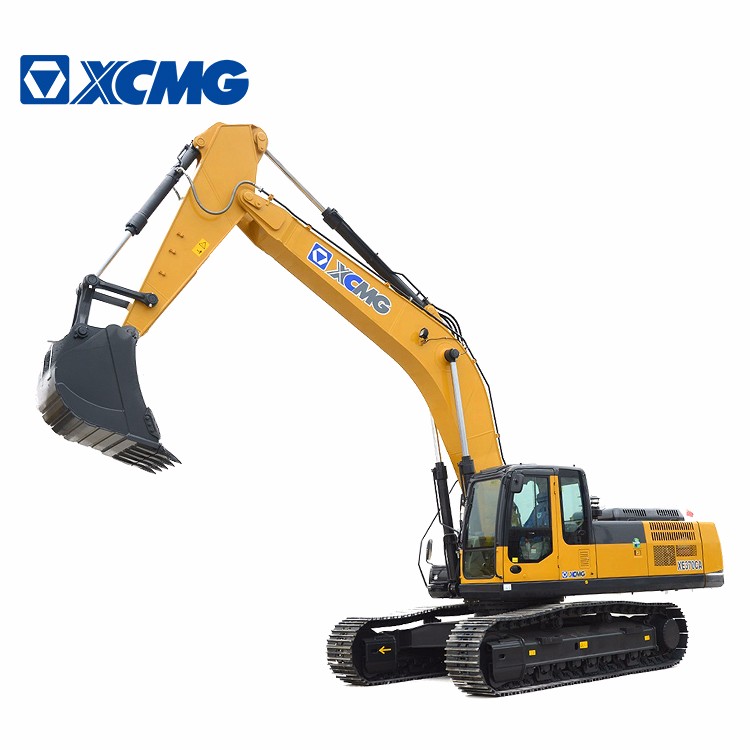

35 ton XE370CA hydraulic Crawler Excavator .

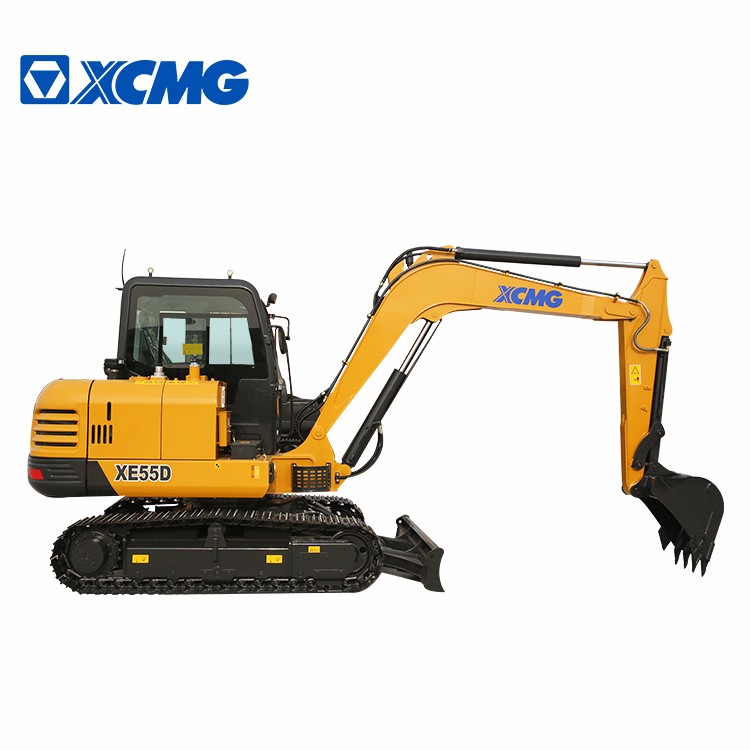

5 ton XE55D small hydraulic Crawler Excavator.

The complete machine is small,mainly suitable for landscaping, urban construction, pipeline laying and other working conditions.Featuring low noise and excellent economical efficiency.
