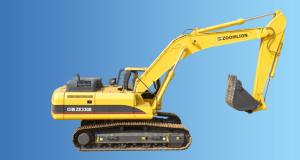

Main Pump Excavator ZE330E Upgraded Electrically Controlled System Accurate

Name: Main Pump Excavator ZE330E Upgraded Electrically Controlled System Accurate
Brand: CIVL
Price: 1 USD

Quality Main Pump Excavator ZE330E Upgraded Electrically Controlled System Accurate wholesale

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Working mass : 32500kg

Rated power : 198/2000 kw/rpm

Standard bucket capacity(SAE) : 1.45m3

Engine model : Cummins 6C8.3

Delivery Time : Within 35 days

Contact Now

Powerful,energy-efficient,reliable and durable
Upgraded electrically-controlled system with accurate,stable,reliable performance in control,optimizing the machine in efficiency,energy-saving and power consumption.

	Item	Unit	ZE330E
Key Parameter	Working mass	kg	32500
	Rated power	kw/rpm	198/2000
	Standard bucket capacity(SAE)	m3	1.45
	System flow (Max. pressure/ Max. flow)	-	32.4/35.3 Mpa 2×264 L/min
	Engine model	-	Cummins 6C8.3
	Max. torque	N.m/rpm	1157/1500
	Traveling speed (low/high)	km/h	3.1/5.1
	Slewing speed	rpm	9.6
	Gradeability°	°	35°
	Max. drawbar pull	kN	264
	Digging force of bucket (ISO)	kN	219
	Digging force of stick (ISO)	kN	171
Basic Parameter	Slewing radius of tail	mm	3428
	Tail length	mm	3403
	Counterweight ground clearance	mm	1161
	Min. ground clearance	mm	499
	Ground contact length	mm	3830
	Track length	mm	4747
	Track gauge	mm	2590
	Track width	mm	3190
	Track shoe width	mm	600
	Height of grouser	mm	30
	Slewing table width	mm	2995
Operating Range	Max. excavating radius	mm	11075
	Max. excavating distance	mm	10888
	Max. excavating height	mm	10170
	Max. discharging height	mm	7110
	Max. excavating depth	mm	7380
	Max. vertical excavating depth	mm	6410
	Min. slewing radius of front	mm	4390
