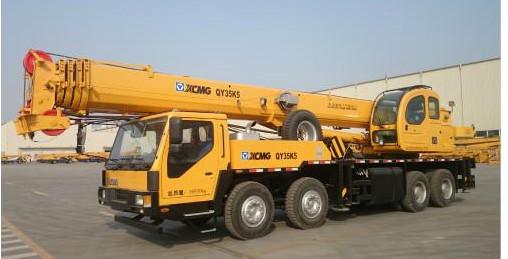

Lifting Hydraulic 35000KG/35T Truck Crane With 47M Telescopic Boom
Advantages
Extend the jib length, which can extend the working radius to the most.
Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.
Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.
Torque limiter
The colorful LCD display of the torque limiter can shows all the important operating information.
Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.
Specification
| Dimension | Unit | QY35K5 |
| Overall length | mm | 12620 |
| Overall width | mm | 2500 |
| Overall height | mm | 3350 |
| Total weight in travel | kg | 36930 |
| Front axle load | kg | 12330 |
| Rear axle load | kg | 24600 |
| Engine model | | SC9DK320Q3 |
| Engine rated power | kW/(r/min) | 235 / 2200 |
| Engine rated torque | N.m/(r/min) | 1250 / 1400 |
| Max. travel speed | km/h | 75 |
| Min. turning diameter | m | 19.5 |
| Min. ground clearance | mm | 260 |
| Approach angle | ° | 17 |
| Departure angle | ° | 15.7 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 30 |
| Main performance | | |
| Max. rated total lifting capacity | t | 35 |
| Min. rated working radius | mm | 3000 |
| Turning radius at turntable tail | m | 3.055 |
| Max. lifting torque | kN.m | 1200 |
| Base boom | m | 10.5 |
| Fully extended boom | m | 39.6 |
| Fully extended boom+ jib | m | 54.6 |
| Longitudinal outrigger span | m | 5.35 |
| Lateral outrigger span | m | 6 |
| Boom luffing time | s | 68 |
| Boom full extension time | s | ≤155 |
| Max. swing speed | r/min | ≥2.5 |
| Max. speed of main winch (single rope) | m/min | ≥130 |
| Max. speed of aux. winch (single rope) | m/min | ≥130 |
